ELK M1KP3 M1 LCD Keypad


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

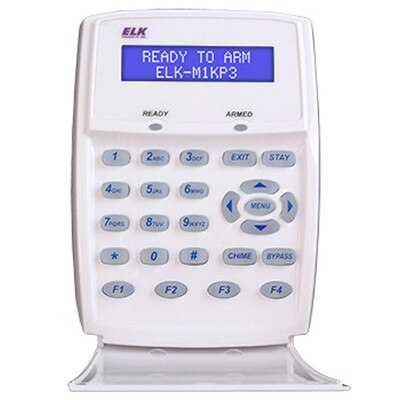

The ELK-M1KP3 is an addressable, surface mount LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the Elk menu navigation keys. The M1KP3 is compatible with external 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc. It features a hinged door over the keys.


  • Blue/white Backlighted Hi-Contrast LCD Display
  • Four (4) Programmable Function Keys
  • Unique Menu Navigation/Direction Keys
  • Built-in Piezo Sounder with adjustable pitch
  • Accepts External 26 bit Wiegand Prox Reader (Opt.)
  • Input for 1 Supervised Zone
  • One Programmable Switched Positive Voltage Output
  • Exit, Stay, Chime, and Bypass Keys
  • Programmable display of time & date
  • Displays system diagnostics and settings
  • Surface mount only

Tech Specs

  • Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
  • Color: White
  • Operating Voltage: 13.8 VDC
  • Current Draw: 40-50 mA Idle (low back light level, sounder silent) 160 mA Fully Active (max. back light & sounder active)
  • Size: 3.97" x 5.425" x 1.19", does not cover electrical box
