ELK Surge Suppressor, Single Telephone

$39.82
SKU: ELK951

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

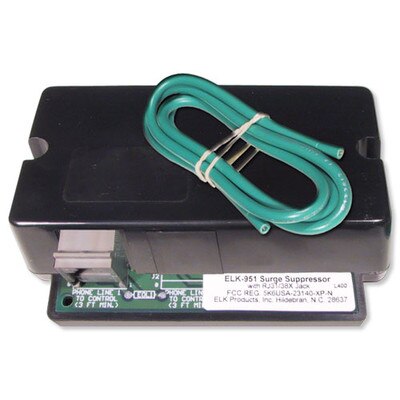

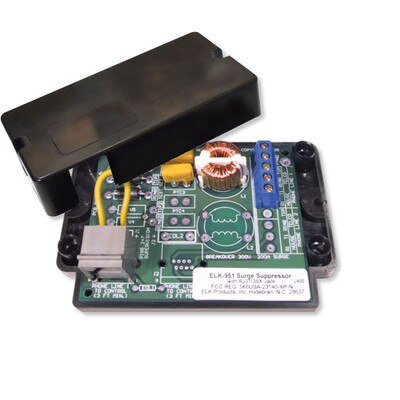

The ELK-951 is an RJ31/38X Telephone Jack containing solid state transient suppression designed to protect the Telephone inputs on an alarm control. It responds to power surges and transients in less than 1 nanosecond, automatically restoring after each surge within the specified ratings. The ELK-951 is compact and easy to install and features high quality, clearly labeled screw terminals, 8 pin modular phone connector, built-in tamper loop, and automatic shorting pins for cord removal. The ELK-951 is FCC Registered under part 68 and eliminates the need for a separate RJ31X telephone jack.

  • Superior Solid State Surge Suppression
  • Rapid Response Time
  • Protects a Single Incoming Telephone Line
  • Clamps Line-To-Line and Line-To-Ground
  • Self-restoring After Surges Within Ratings
  • RJ31/38X 8-Pin Modular Jacks
  • Convenient Test points for Lineman's Test set
  • Surface Mount Enclosure

Tech Specs

  • Response Time:< 1 nanosecond
  • Breakover Voltage: 300 Volts
  • Peak Pulse Current: 100 Amps
  • Ground Wire: 24" – 14 Gauge Stranded
  • FCC Reg. Number: 5K6USA-23140-XP-N Ren No. 0.0B
  • Size: 4.4 x 3 x 1.15 inches
