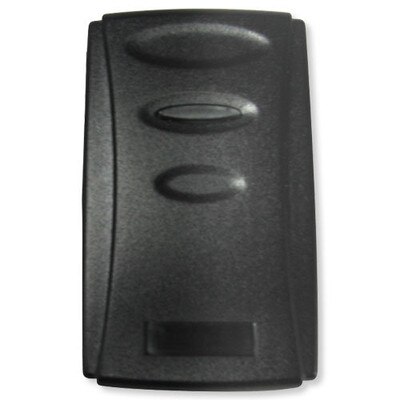

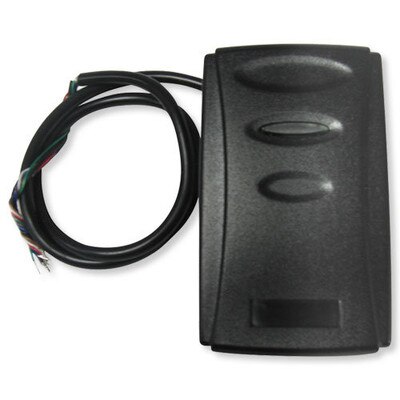

ELK UltraProx Wiegand Reader

$104.02
SKU: ELK106055

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Elk UltraProx Wiegand Reader is a compact, technically advanced external proximity reader with 26 bit Wiegand output for use with a separate controller. Compatible with Elk M1 control panels and most other access controllers. Ideal for higher security installations and as an alternative to remembering PIN codes.

Features:

  • Compatible with Elk M1 controllers (use ELK-W035A wiring harness)
  • Compatible with most access controllers
  • 26-bit Wiegand Output
  • Slimline waterproof housing with epoxy potted electronics
  • User configurable inputs for the onboard buzzer and green LED
  • Compatible with Clamshell Style (Credit Card size) Proximity Cards (ELK-M1PRC)
  • Compatible with Keychain Style Proximity Fobs (ELK-M1PRF)
  • Substitutes for User Code Pin Entry

Tech Specs

  • Reader Format: 26 bit Wiegand
  • Operating Voltage: 12 VDC
  • Current Draw: 50 mA.
  • Size: 1.9 W x 3.2" H x .9" D
