Ecolink ZigBee PIR Sensor

$46.03
SKU: ECPIRZB1ECO

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

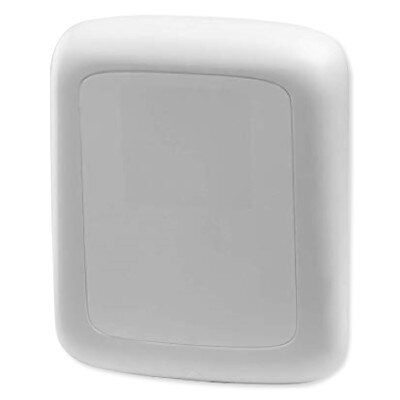

The Ecolink ZigBee PIR Sensor detects human sized movement within a room. 18 parabolic mirrors allow for both long and close range detection. The sensor ignores pets up to 85 lbs. The sensor is simple to install. Simply remove the battery tab to trigger the pairing process. A Green LED provides clear feedback of successful pairing and operation.

  • Detects motion within 39 ft area
  • Ignores movements of small to medium size pets
  • Battery-powered, no wiring required
  • Sends signal if cover is removed
  • For indoor use only

In The Box:

  • Sensor
  • Sensor Mounting Bracket
  • 4 x Screws
  • 2 x Jumpers
  • Battery
  • 3 x Pieces of Adhesive Tape

Tech Specs

  • Part Number: PIRZB1-ECO
  • UPC: 851166005176
  • Color: White
  • Technology: PIR (Passive Infrared)
  • Operating Frequency: 915 MHz
  • Operating Range: Up to 100 feet (line of sight)
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Detection Radius: 39 feet
  • Detection Angle: 45 degrees in either direction from the sensor's center
  • Battery: 3V Lithium CR123A (included)
  • Battery Life: Approximately 3 years
  • Approvals: FCC, IC
