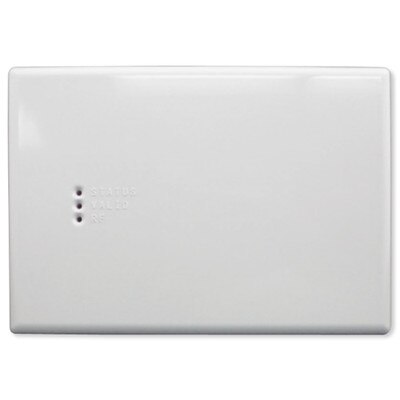

Elk 2-Way Wireless Transceiver for Multi-Transceiver Installations


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The M1XRFTW and M1XRFTWM two-way wireless transceivers allow an ELK-M1 or ELK-M1EZ8 control to accept Elk's complete line of two-way wireless sensors.

The ELK-M1XRFTWM specifically designed for installations requiring multiple transceivers to provide coverage for large areas. It has been optimized to provide superior signal reception and reliability in multi-transceiver applications.

  • Allows up to 144 individual wireless zones (sensors/points)
  • Operates from the 4 wire RS-485 Data Bus
  • Up to 4 M1XRFTWM transceivers may be connected to a single M1 or M1EZ8 control for redundancy and greater coverage
  • Flash memory for firmware updates

In The Box:

  • Two Way Wireless Transceiver
  • Plastic Housing
  • 4 x #6 Plastic Anchors
  • 4 x # 6 Pan Head Sheet Metal Screws
  • Instructions

Tech Specs

  • Part Number: ELK-M1XRFTWM
  • Operating Frequency: 902 to 928 Mhz
  • Transmission Duration (active on-time): 50 milliseconds
  • Sensitivity: > 105 dbm
  • Operating Temperature: 0 to +120 degrees F
  • Operating Voltage: 12 VDC
  • Current Draw: 25mA Receiving, 85mA Transmitting
  • Housing Dimensions: 6.75 x 4.69 x 1.13 inches
  • Approvals: FCC, IC
  • Warranty: 2 Years
