Elk Window & Shock Sensor


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

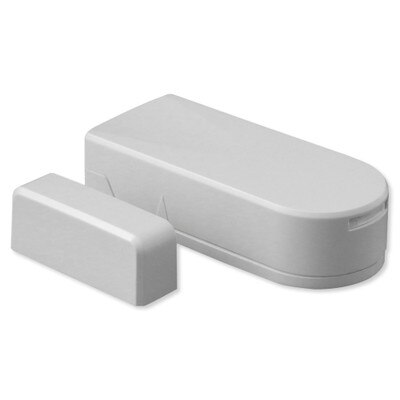

The ELK Window & Shock is a wireless window sensor designed to detect the opening of a window or vibrations made by an intruder attempting to break the window. A built-in reed switch monitors window movement and a piezo shock sensor monitors vibrations. When status changes are detected, the sensor will send alerts to a connected Elk or third party receiver.

This sensor is compatible with Elk's 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz Frequency and use the ITI/Interlogix protocol.

  • Built-in reed switch and shock sensor
  • Adjust the sensor's sensitivity and range
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals

In The Box:

  • Window/Shock Sensor & Magnet
  • (2)CR2032 Batteries
  • Double Sided Mounting Tape
  • Instructions

Tech Specs

  • Part Number: ELK-319WS
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery Type: Two (2) CR2032 3VDC lithium coin-cell
  • Operating Temp Range: 32 to 120°F (0 to 49°C)
  • Storage Temp Range: -30 to 140°F (-34 to 60°C)
  • Relative Humidity: 95% non-condensing
  • Dimensions: 2.25" L x .1.0 x 0.50" in. (L x W x D)
  • Warranty: 2 Years
