Enbrighten Z-Wave Plus Split Duplex Wall Receptacle, Tamper-Resistant, Gen5

$50.81
SKU: JA55256

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

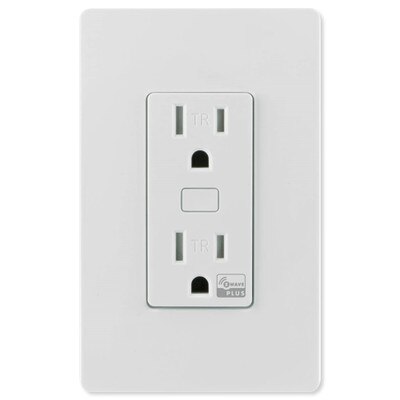

The Enbrighten Z-Wave Plus Split Duplex Wall Receptacle, Tamper-Resistant, White adds wireless On/Off control to a single device plugged into the Z-Wave controlled outlet. This tamper resistant duplex receptacle includes a blue LED indicator light to easily locate the receptacle in a dark room. The receptacle replaces your current electrical outlet, uses your existing wiring and provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a standard pass-through AC outlet for other electrical appliances.

Features:

  • Consists of one Z-Wave Plus-controlled outlet and an always-on outlet
  • Tamper-resistant outlets prevent foreign objects from being inserted into any slot individually
  • ON/OFF button on the outlet allows manual control of the device
  • Repeats Z-Wave Plus signals from your hub or other Z-Wave Plus devices to extend wireless range by up to 150ft

NOTES: For indoor use only. A neutral wire is required for installation. Wallplate sold separately. Uses standard single-gang wallplate.

Tech Specs

  • Part Number: 55256
  • UPC: 030878552561
  • Color: White
  • Size: 1-Gang
  • Power: 120 VAC, 60 Hz
  • Protocol: Z-Wave Plus
  • Frequency: 908.4/916 MHz
  • Total max load for both outlets: 1800W (15A), Resistive load
  • Max load for Z-Wave controlled outlet: 960W incandescent, 1/2 HP Motor, or 1800W (15A) Resistive
  • Wireless Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Environmental Conditions: For indoor use only
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Warranty: 2 Years

Product Docs
