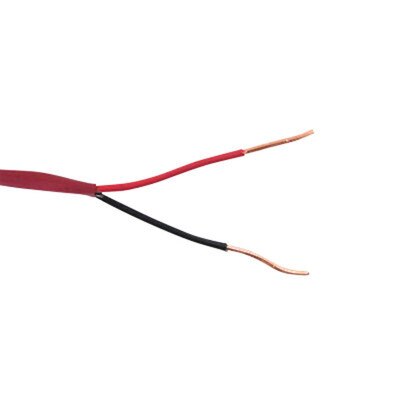

Fire Alarm Wire, 14AWG, 2C, FPLP Plenum Rated, 500'
Product Description
Description: 2C/14 AWG SOLID FPLP PLENUM – 500 FT BOX
Applications: Power limited fire alarm and communications cable for Riser and Non-Riser applications. Fire Alarm, Fire Protective Circuits, Smoke Detectors, Monitor/Detection, Signal, Control Circuits, Initiating Circuits, and Notification Circuits.
Features: Multi-Conductor Unshielded FPLP- Low smoke PVC insulated solid bare copper conductors, twisted with a low smoke PVC jacket. Ripcord and sequential foot markings printed on jacket.
ETL FPLP, CL2P, NEC Article 760, California State Fire Marshall.
Available in boxes of: 500 Ft.
Tech Specs
- Part Number: 14/2FPLP-500
- Conductor: 14 AWG Solid SBC Conductor
- Total Cable Weight: 56 kg/km
- Final Diameter: 0.206 inches
- Insulation: PVC
- Jacket: PVC
- DC Resistance: 25°C: 2.6 Ohms / 1000 feet
- Mutual Capacitance: 24.6 pF/ft
- Impedance: 73.7 Ohms
- Velocity Of Propagation: 67 percent
- Inductance: 1.2 mH/km
- Print Notes: Sequentially marked per 2FT (0 – infinity)
- Standard Print: STRUCTURED CABLE PRODUCTS – – – P/N 14/2FPLP – – – (UL) CL2P/CL3P E198137 OR FPLP 75°C FT-6 UNSH 2/C 14 AWG SOLID – – – ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 RoHS
- Cabled OD Avg: 0.142
- Insulation Thickness: 0.011
- Jacket Thickness: 0.017
- Certified: UL CL2P/CL3P OR FPLP
- Flame Rating: FT-6
- Max Voltage: 300V
- NEC Articles: 760 FPLP
- Min. Bend Radius/Minor Axis: 1.442 inches
- Operating Temperature: -20° to 75°C
- Standard UL Temp: 60°C
