Global Caché iTach, IP to Contact Closure

$115.50
SKU: GCIP2CC

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Seamlessly connect, monitor, and control relay activated devices over a network and the Internet. The iTach TCP/IP (Ethernet) devices provide a new level of automation and control flexibility, enabling device networking in homes, businesses, or schools. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.

The innovative design of the Global Caché iTach allows for easy and flexible integration into any networked control solution. The iTach is a simple wired or wireless conduit between you and your device over a network or the Internet. This is instant network-enabling at its best, delivering the power of choice at a cost-effective price.

Features:

  • Connects almost any electrical device to a network instantly
  • Access, monitor, and control standalone equipment
  • Wired, wireless, and PoE models available
  • Supports eight simultaneous connections
  • Ultra compact design, stylish enclosure can fit almost anywhere
  • On board web server for easy setup, HTTP, DHCP
  • Flash upgradeable for firmware enhancements in the field
  • Made in the USA and RoHS compliant

In The Box:

  • iTach TCP/IP to Contact Closure (Relay)
  • Power Adapter
  • USB Cable
  • Quickstart Guide

Available for sale only in the U.S.

Tech Specs

  • Part Number: IP2CC
  • Power Input: 5 to 16V DC@300mA (wall power adapter included); USB power cable draws power from USB port (included)
  • Setup: Integrated web server for easy configuration; Configure through TCP/IP setup commands
  • iHelp Setup Utility: Downloadable iHelp software simplifies network discovery and setup
  • IR Learning Utility: Downloadable iLearn software allows for the capture and playback of IR commands for control uses

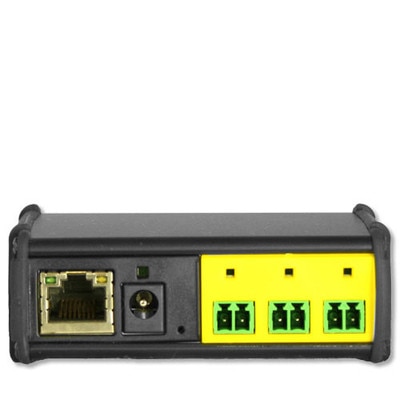

  • Network Connection: RJ45 Connector; 100/10 Mbits Ethernet Protocol; Adheres to TCP, DHCP and HTTP standards
  • LED Indicators: Power and all connectors to indicate activity
  • Contact Closure/Relay: 3 integrated contact closure relays w/ transient voltage suppression; Pluggable screw terminal 24V AC/DC@.5A N.O. contact; Allows for switching of low voltage wiring

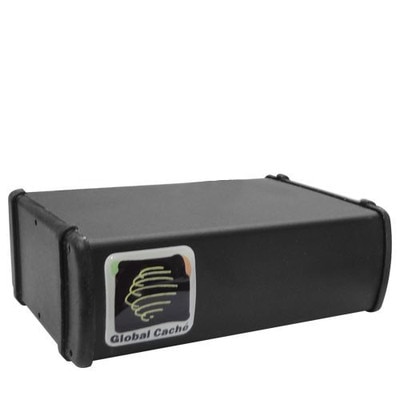

  • Device Packaging: Aluminum extrusion case, rubber end caps and plastic face plates
  • Weight: 3.25 ounces (6 oz. with power supply)
  • Dimensions: 3.25(L) x 2.25(W) x 1.25(H) inches
  • Shipping Box Dimensions: 9.0(L) x 3.5(W) x 2.0(H) inches
  • Certifications: FCC (Part 15, Class B), C-tick, CE; RoHs compliant
  • Warranty: 2-Year Limited
