IST Bluetooth Volume Control with Amplifier

$94.50
SKU: ISJABTVC

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

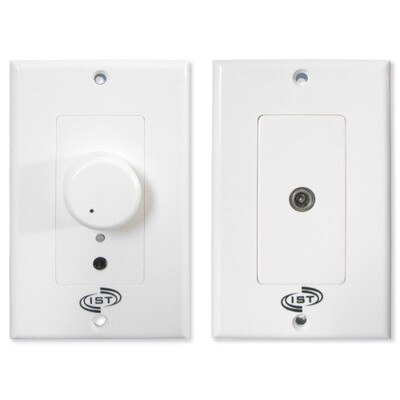

This advanced Bluetooth Stereo Volume Control with Class D Amplifier JA-BT-VC can replace traditional volume controls to give independent zone control or use as a stand alone amplifier solution for hard to wire locations. With convenient installation into a standard electrical box, you'll get high performance from a small device and hidden simplification.

  • Easy installation and BT pairing
  • Custom name programming (Android only)
  • 3.5mm audio jack

All you need is this JA-BT-VC Volume Control and a set of speakers, either in-wall or bookshelf style from installed wallplates. Amplify your smart phone's apps like Pandora, Spotify, Native Music, Youtube videos, Amazon Videos, Netflix and more. Turn your room into a mini-theater

This Bluetooth volume control with amplifier, a complete new product for 2.0 stereo system, that has the traditional volume control functions with Bluetooth/analog, and amplifier.

  • Can be installed to replace a traditional volume control.
  • Everyone, with Bluetooth transmission devices or 3.5 analog jack, can play their favorite music independently of other rooms.
  • Suitable for home, hotel, suntan salons, massage treatment rooms or anywhere that you would like an independent room with music. This is a stand alone Bluetooth and amplifiers built in. The device is intended to be for single room operation for individual music tastes.
  • More convenient, easier, quicker installation than traditional volume controls,and there is no need to redistribute the audio wires inside the ceiling or wall. Existing 16 gauge speaker wire may be used.
  • Multi-color faceplate available to match most other standard wallplate colors. White, Ivory, and Almond included at no extra charge.
  • When installing it is possible to customize the Bluetooth name.
  • UL approved AC-DC power cord needed. 24V 3Amp minimum for rated power output, NOT INCLUDED.
  • Safe inner-wall DC power design.
  • Easy and entire 2.0 sound system, dispensable for an extra amplifier.
  • Bluetooth 4.1 version, music play (speed) can be synchronized with movie when you play movie with your smart phone.
  • Use for listening to iPhone, iPad, Droid, Handheld movies on in room speakers.

In The Box:

  • Bluetooth Stereo Volume Control with Class D Amplifier (JA-BT-VC)
  • DC 24V OUTPUT
  • White, Ivory, and Almond interchangeable faceplates (2 each)

NOTE: Power supply not included. Approved AC-DC power cord with 24V 3A minimum for rated power output needed.

Tech Specs

  • Part Number: JA-BT-VC
  • Bluetooth: 3.0+EDR stereo module
  • Bluetooth Version: Bluetooth 4.1
  • Amplifier: High-efficiency 30Wx2 class D amplifier
  • Frequency Range: 20-20k Hz
  • Stereo Inputs: One (1) 3.5mm jack
  • Wireless Range: At least 30 feet Bluetooth distance without obstacles
  • Supplying Voltage: 24V DC 3 A
  • Standby Current: 20mA
  • Turnoff Current:<1mA
  • Output Power: 30W x 2 (24v 1kHz 0dB 4 ohms)
  • S/N Ratio: 65dB
  • Resolution: 60dB
  • Power Supply Recommendation: 110~240V AC input, 24V DC output, 3A, UL approved, DC female standard Φ2.1mm.
  • Wiring Recommendation: Existing 16 gauge speaker wire may be used
  • Operating Temperature: 14°F to 149°F (-10°C to 65°C)
