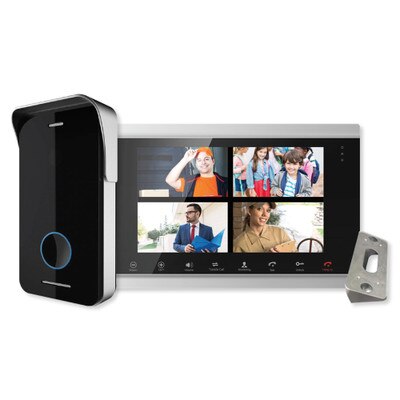

IST V510 10" Monitor & Smartphone Video Doorbell Kit


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm –

Product Description

The IST V510 10" Monitor & Smartphone Video Doorbell Kit is specifically designed for front door security. Included is a video doorbell unit that will alert your smartphone and indoor colored monitor when the doorbell button is pressed or motion is detected. This kit will allow you to communicate with your visitors without having to open your door and with its built-in storage (SD card needed, sold separately) you'll be able to access video and snapshots of your door area.

  • iOS/Android Smartphone & Tablet Compatible
  • 10.1" TFT LCD (16:9) Color Monitor
  • Video Recording with built-in SD Storage
  • LED Night Vision Technology
  • 1/4" Pinhole CMOS Camera
  • MPEG Picture format
  • Use up to 2 Smartphone Doorbells, 2 CCTV Cameras & 3 monitors
  • 2 Wireless Door Unlock Releases
  • Quad Screen Display
  • Video System: PAL/NTSC compatible
  • Uses 4 conductor 22 awg wiring
  • Conversation Duration: 120s
  • Power Consumption: 12W Max
  • Power Supply: External Switching Power Supply (DC 12V/2A),
  • Built-in power supply (AC 100V-240V) – both optional
  • Housing is weather resistant, theft-proof and surface-mounted
  • Definition: 1024 (H) x 600 (V)

In The Box:

  • V510 Video Doorbell Camera
  • V510 IP Color Monitor
  • Angle Bracket
  • Installation Hardware
  • Manual

NOTES: Requires an Internet connection to connect to IST-View app. Requires MicroSD card (sold separately) to record snapshots and video. Requires door release mechanism and power source to unlock the door remotely via the IST-VIEW app, both sold separately. Connect a CAT5 cable (via network conversion with 4 pin interface, sold separately) from your router or switch to get the best Internet data transfer speeds.

Tech Specs

  • Part Number: V510KIT

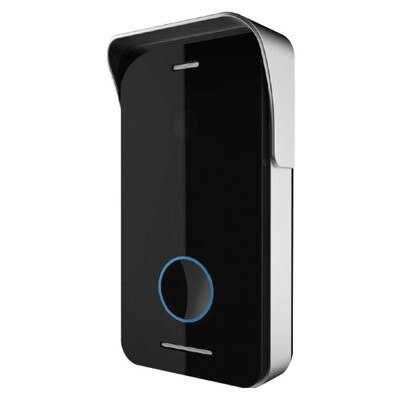

V510 Smartphone Video Doorbell

  • Part Number: V510-DOOR
  • Camera: 1/4" Pinhole CMOS
  • Camera View: 68°-100° View Angle with included Angle Bracket
  • Resolution: 720 TVL Definition
  • LED: Night vision technology
  • Wireless Door: Unlatch/release with 2 relays
  • Sensor: Motion activated with notifications
  • Power: 200mA (supplied from the inside monitor)
  • Warranty: 2 Years

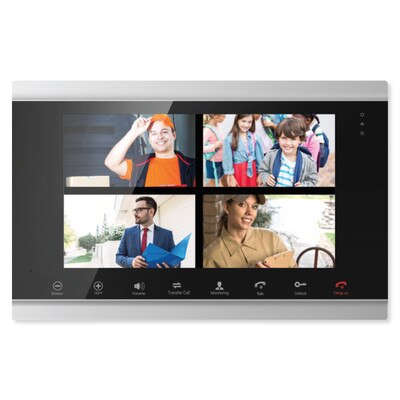

10" V510 IP Color Monitor

  • Part Number: V510-MONITOR
  • Display Screen: 10" TFT LCD Screen (16:9)
  • Resolution: 1024x600
  • Video System: PAL/NTSC
  • Intercom Mode: Semi-duplex communication
  • Conversation Duration: 120 seconds
  • Power Consumption: 12W max
  • Power Supply:
    • External Switching Power Supply (DC 12V/2A) - Optional
    • Built-in power supply ( AC100V - 240V) - Optional
  • Work Temperature: 14°F - 140°F (-10°C - +60°C)
  • Installation Way: Surface Mounting
  • Extension Memory: Built-in storage expandable with SD Card of 128GB maximum
  • Warranty: 2 Years
