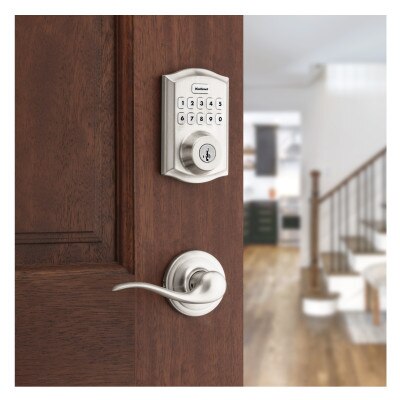

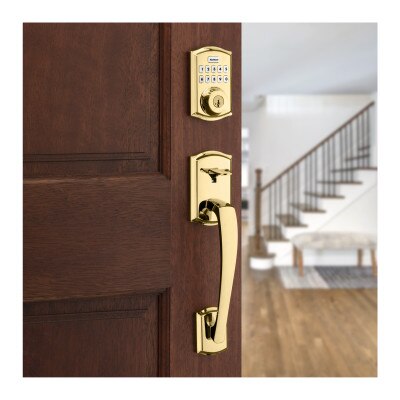

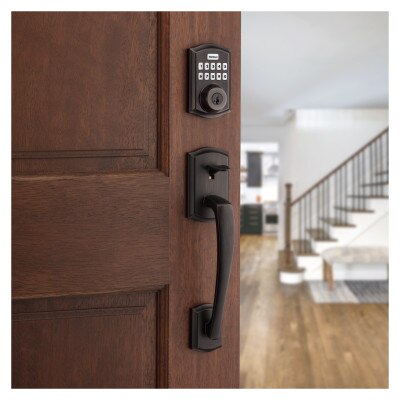

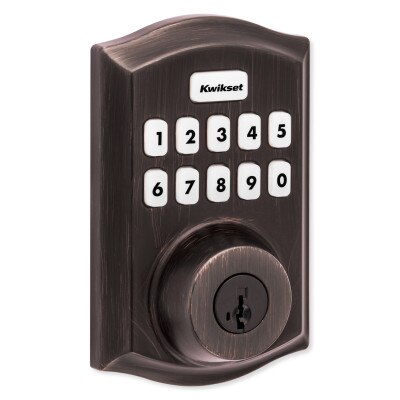

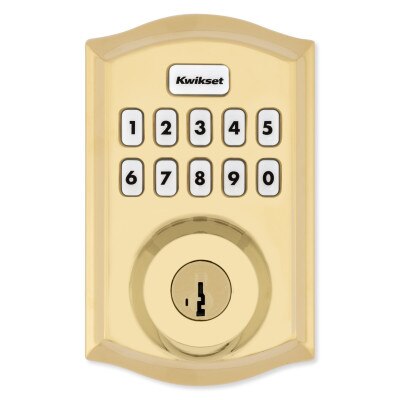

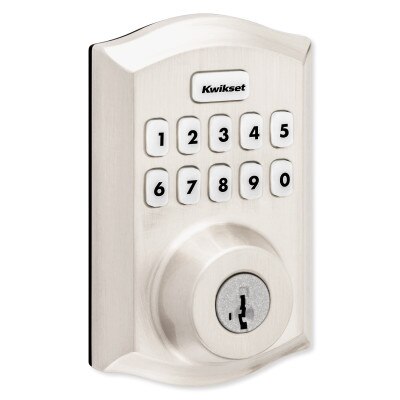

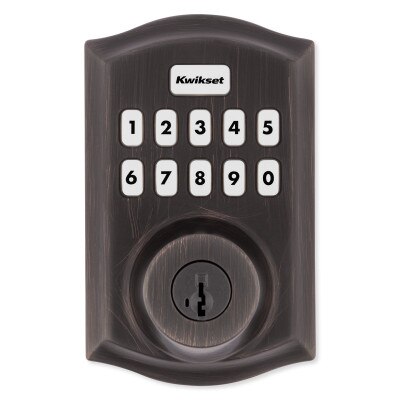

Kwikset Home Connect 620 Traditional Keypad Connected Z-Wave 700 Smart Lock
Product Description
The Kwikset Home Connect 620 Traditional Keypad Connected Z-Wave 700 Smart Lock adds your front door to your Z-Wave network in order to provide additional connectivity and accessibility to your home. The Smart Lock can be locked/unlocked using a numeric passcode, standard turnkey, and through your connected Z-Wave hub's mobile app.
- Z-Wave 700 smart lock locks/unlocks via 4-to-8 digit passcode, turnkey, or compatible Z-Wave hub's mobile app
- Keypad saves up to 250 user codes and includes One Touch Locking
- Keypad remains lit for 30 seconds after last input
- SmartKey Security™ design protects against advanced break-in techniques
- Re-key design allows for quick and easy rekeying
- Compatible with KW1 or SC1 keyway options
- Home Connect technology uses Z-Wave signals to wirelessly connect to smart security and home automation systems
- Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security
- Latch has adjustable backset to fit most standard door preparations
- Compatible with Amazon Alexa, Google Assistant, SmartThings, Ring, Wink, Vera, and Ezlo
- Lifetime mechanical and finish warranty, and 1 year electronics warranty
In The Box:

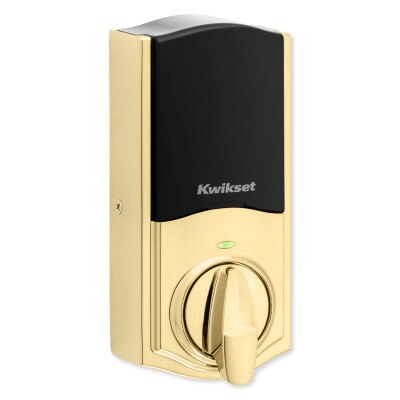

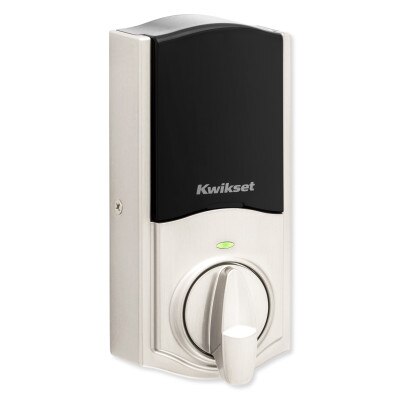

- Interior Assembly
- Interior Cover
- Exterior Assembly
- Battery Pack
- Mounting Plate
- 4 x AA Batteries
- 2 x Keys
- SmartKey Rekey Tool
- Installation Hardware
NOTE: Requires connection to the Internet. Do not use an electric drill or an electric screwdriver to tighten screws.
Tech Specs
- Part Number:

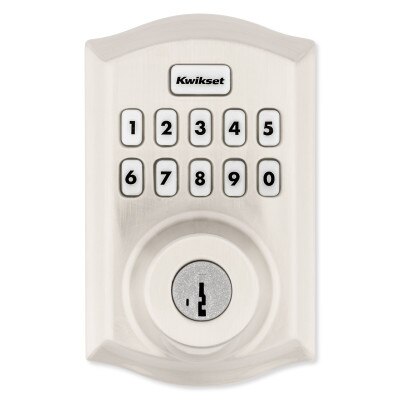

- 98930-001: Satin Nickel

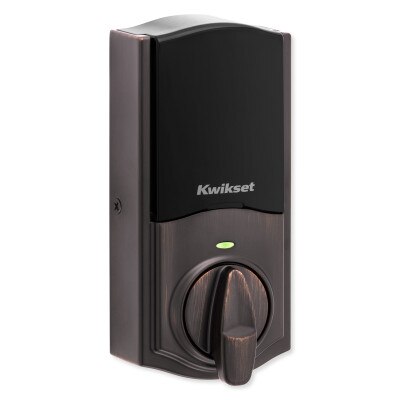

- 98930-002: Venetian Bronze

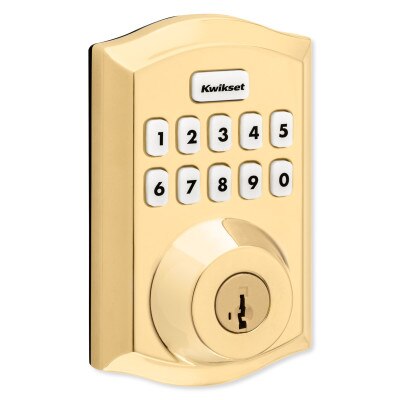

- 98930-003: Brass
- UPC:
- 98930-001 (Satin Nickel): 883351793407
- 98930-002 (Venetian Bronze): 883351793414
- 98930-003 (Brass): 883351793421
- Electrical: Input Power 6V (4 x AA alkaline batteries)
- Mechanical:
- Door Prep 1 1/2" & 2 1/8" diameter bore hole & 1" deep latch hole
- Backset Adjustable 2 3/8" or 2 3/4"
- Door Thickness 1 3/8" – 2 " automatic adjustment
- Faceplates 1" x 2 1/4" round corner standard
- Strikes Round corner strike 1 1/8" x 2 3/4"
- Latch Round corner adjustable 2 3/8" x 2 3/4"
- Bolt 1" throw, steel deadbolt
- Door Handing Reversible
- Cylinder SmartKey® Keyway
- Environmental:
- Temperature Range:
- Exterior: -40°F to 150°F
- Interior: 32°F to 140°F
- Humidity:
- Exterior: 100% condensing
- Interior: 30% – 95% non-condensing
- Dimensions:
- Exterior: 2.81 W x 4.56 H x 1.25 D inches (71.43 W x 115.88 H x 31.75 D mm)
- Interior: 2.71 W x 5.78 H x 1.93 D inches (69.1 W x 146.6 H x 49.5 D mm)
- ANSI/BHMA grade 2 certified
- Warranty:
- Lifetime mechanical and finish warranty
- 1-year electronic warranty
