Letzgo AC Low Voltage Digital Dimmer

$123.30
SKU: LGACLVDD1210

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

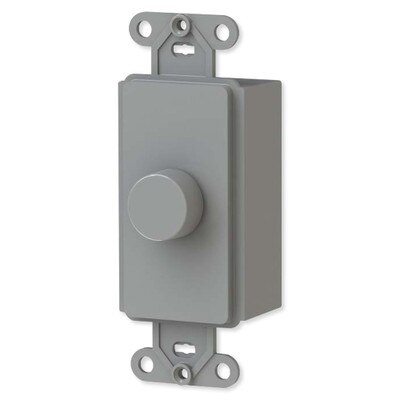

The Letzgo AC Low Voltage Digital Dimmer is ideal for dimming your landscape lights, including dimmable incandescent or LED bulbs, and halogen lamps (up to 120 W at 12 VAC). It has an IP67 rating (resistant to dust and water), and features short-circuit and transient protection, as well as intelligent soft-start functionality.

  • Lower installed cost than dimmable transformers
  • Dims most bulbs including dimmable LEDs
  • Perfect for indoor and outdoor applications
  • Overload indicator (bulbs blink to indicate overload)
  • Short-circuit protection with simple recovery
  • Transient protection (supply side and load side)
  • Extremely smooth trailing edge dimming
  • IP67 (dustproof, water resistant)
  • Intelligent soft-start

In The Box:

  • AC Low Voltage Digital Dimmer
  • Manual

NOTES: Must be supplied with 12 to 15 VAC secondary side power from a step-down transformer (sold separately) rated appropriately for the load. Total maximum load wattage must not exceed 120W at 12 VAC. Disconnect power at circuit breaker or fuse box when servicing fixture. Use this device only with copper or copper clad wire. Wallplate sold separately.

Tech Specs

  • Part Number: AC-LVDD-1210
  • Current capacity: 10A
  • Operation: 12VAC
  • Max Load: 120W at 12V (No minimum load required)
  • Frequency: Adjust 50Hz – 60Hz
