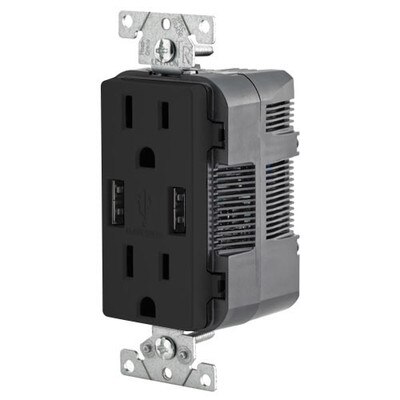

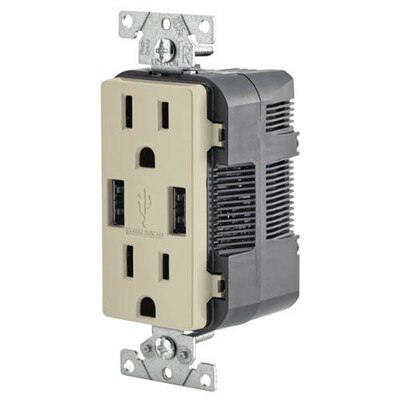

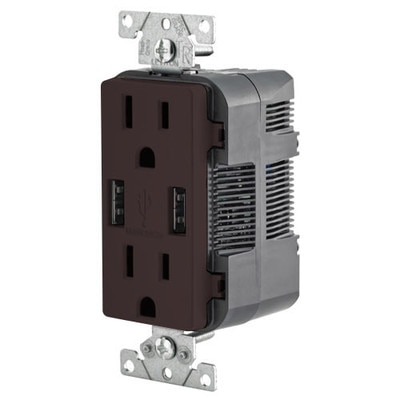

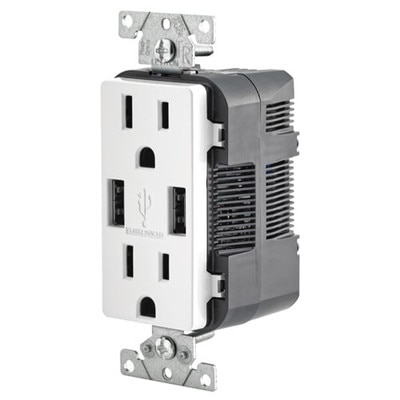

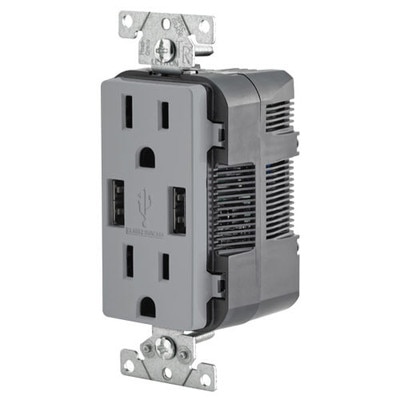

Leviton 2-Port USB Charger & Tamper-Resistant Duplex Receptacle, 15A

Item # LVT5632x

Select an option for availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The Leviton USB Charger/Tamper-Resistant Duplex Receptacle offers two high-powered USB Ports with 3.6A of charging power and two 15A/125V Tamper-Resistant Receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB Ports, leaving the two Tamper-Resistant Receptacles free for other uses. The Leviton USB Charger/Tamper-Resistant Duplex Receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.

  • Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • USB Ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
  • Compatible with USB 2.0 devices
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Easy to install. Can replace existing outlets


  • Receptacle Amperage: 15 Amp
  • Receptacle Voltage: 125VAC
  • Ratings: 15A-125V
  • Horsepower Rating: 15A-1/2 HP


  • Operating Temperature: -10 to 40°C
  • Flammability: Rated V-0 per UL94


  • Cover Material: Thermoplastic
  • Strap Material: Steel
  • Body Material: Thermoplastic


  • Torque Range: 12-14 inch pounds
  • Terminal Accommodation: 14-12 AWG
  • Product ID: Stamped on Strap
  • Termination: Back and Side
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd

Standards and Certifications

  • Warranty: 5 Year Limited
  • Listed: cCSAus
  • NOM: 057
  • FCC Part 15: Class B for Residential Compliance
