  • Leviton Decora Weather-Resistant Single-Pole Switch, 15A/120V

Leviton Decora Weather-Resistant Single-Pole Switch, 15A/120V

$18.33
SKU: LVW56012W

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Leviton Decora Weather-Resistant Single-Pole Switch, 15A/120V is the ideal option for controlling outdoor lighting or other electrical devices. It's completely weather resistant and very durable due to its UV stabilized thermoplastic construction (for damp and wet conditions). It's perfect for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans, and fountains.

  • All-in-one weather-resistant single-pole switch, no outdoor cover required
  • Actuation done with magnets, which allows the subplate/switch to be impervious to water intrusion
  • Rocker switch for smooth operation

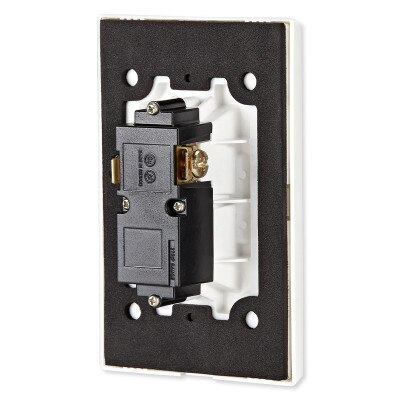

  • Side and back wire for easy installation
  • NEMA 3R Rated to meet exterior Code

Why You Would Use This Product:

Providing electrical power for your outdoor living space typically means installing a standard switch with an outdoor cover. But, when using the Leviton Decora Weather-Resistant Single-Pole Switch, 15A/120V, you won't have to bother using an outdoor cover because the switch is completely weather resistant and specifically designed for wet and damp locations.

In The Box:

  • Surge Protection Panel
  • Manual

Tech Specs

  • Part Number: W5601-2W
  • UPC: 078477223437
  • Switch Type: Single Pole
  • Amperage: 15 A
  • Color: White
  • Device Type: Rocker Switch
  • Feature: Weather-Resistant
  • Grade: Residential
  • Grounding: Grounding
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Max. Amperage: 12 Amp
  • Pole: 1
  • Voltage: 120/277 VAC
  • Actuator Material: Thermoplastic
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Terminal Accom: Back Wire #10-#14 AWG; Side Wire #12-#14 AWG
  • Termination: Side Wire, Back Wire
  • Torque Range: 14 – 18 in.-lbs
  • Type: Weather-Resistant Rocker Switch
  • Certifications: NOM, cULus
  • Warranty: 2-Year Limited
