Leviton QuickPort Home 5e Snap-In Connector
Product Description
The HOME 5e Connector provides network connections for CAT 5e UTP structured cabling systems in residential applications. The connectors support high megabit applications such as Gigabit Ethernet and 622 Mbps ATM. For use in residential applications.
Design Considerations
- Use in any QuickPort housing to support CAT 5e UTP connectivity in surface mount, flush-mount, or modular furniture outlets, or patch panels and patch blocks
- Can be used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax and fiber
- To ID ports, use different colored modules for each application.
Features:

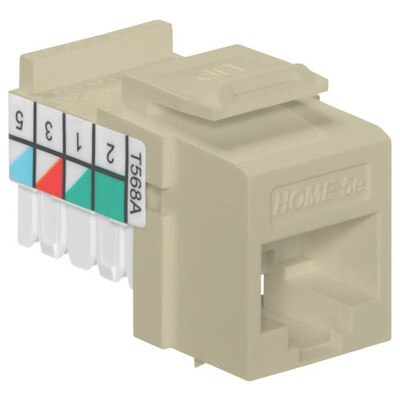

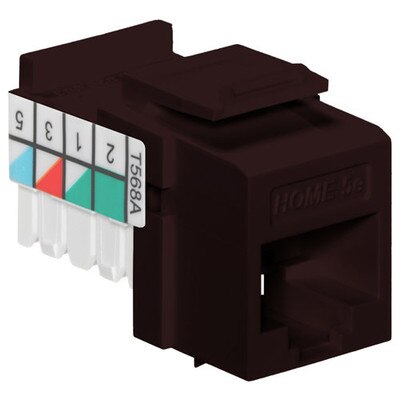

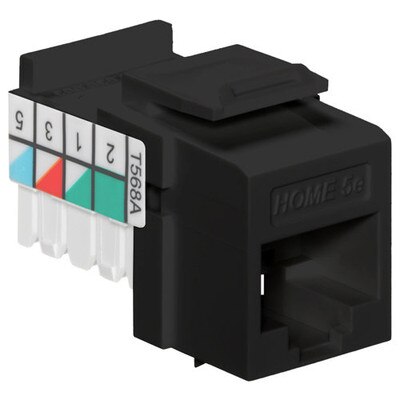

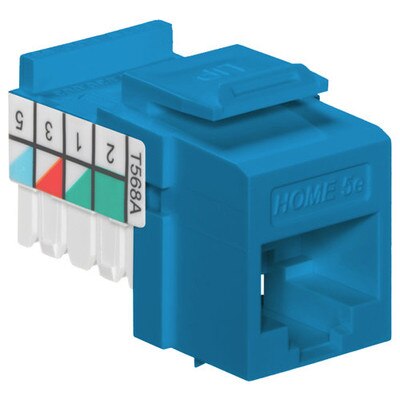

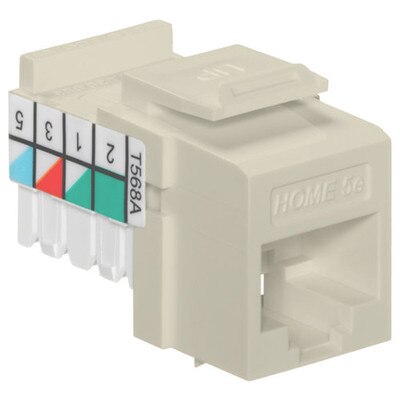

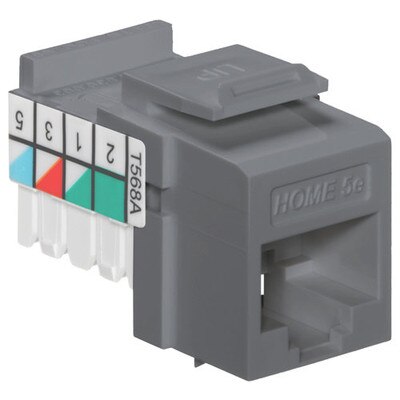

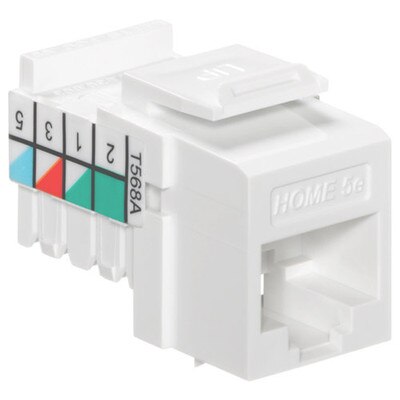

- Available in seven colors
- T568-A wiring
- Individual port configurabilty allows specification flexibility
- Robust one-piece lead-frame design
- Narrow connector allows high-port density in a small area
- Performance supports high megabit and shared-sheath applications
Standards Compliance: Meets all applicable standards and listings:
- TIA-568-C
- FCC Part 68
- cULus Listed
Tech Specs
- Dimensions: .58" H x .63" W x 1.18" D
- Materials: Connector body is high-impact fire-retardant plastic, rated UL 94V-0. Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold over 100 micro-inches of nickel for lowest contact resistance, maximum life. Connector 110-style IDC contacts are solder-plated phosphor bronze.
