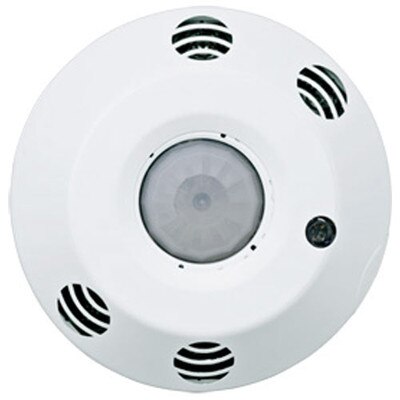

Leviton ODC Multi-Technology Ceiling-Mount Vacancy Sensor

The Line Voltage Vacancy Sensor monitors the space for vacancy. The lights can be turned ON manually by pressing the low-voltage/momentary toggle switch. The sensor turns the lights OFF when vacancy is detected and the delayed-off time has expired. The sensor continually analyzes and adjusts to changing conditions. The sensor uses the latest microprocessor-based technology which permits it to continually adjust and optimize its performance.

The combination of ultrasonic (doppler shift) motion detection which gives maximum sensitivity and infrared motion detection which gives higher false triggering immunity yields a sensor with excellent performance.

The Leviton ODC Series combines line voltage vacancy sensors into a self-contained unit. The integrated design alleviates the need for separate power pack and vacancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.

• Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
• Configurable for Manual ON/Auto OFF
• Vacancy Sensing Time Outs
• Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
• Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
• False Detection Timer: (PIR) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
• Time delay and saved settings are protected during power outages and will return to the last known state
• Output short circuit protection
• Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
• Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
• Industry-exclusive "fail-safe" circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
• Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
• Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
• Lenses on PIR models are easily replaceable and color-coded red (mid range) for contractors and end-users to easily identify lenses from the ground

In The Box:

• 1 x Sensor
• 1 x Mid-Range Lens
• 1 x 360° Perforated Mask
• 1 x 4" x 4" Mounting Plate
• 1 x Emergency Label
• 1 x Low Voltage Connector
• 2 x #6-32 x 1-1/2" Screw
• 1 x Half Mask
• 1 x Tubing Barrier
