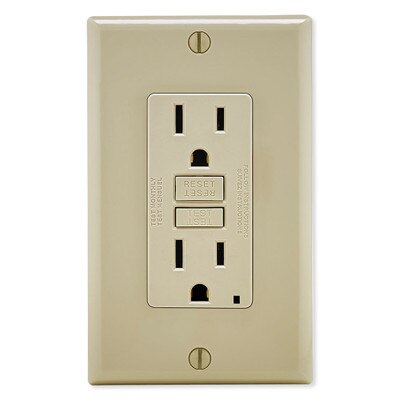

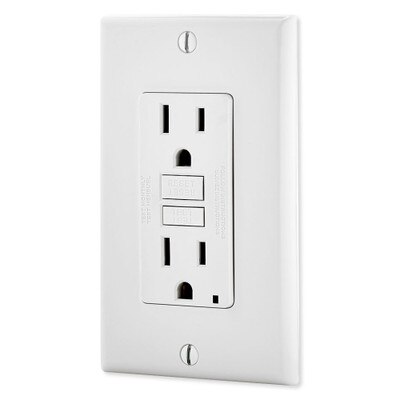

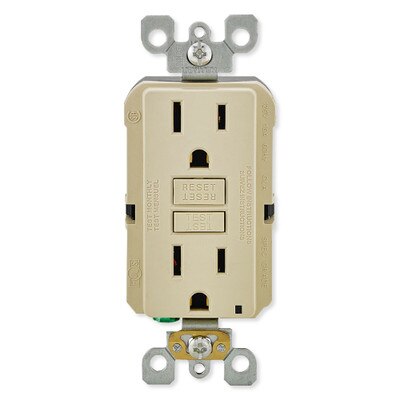

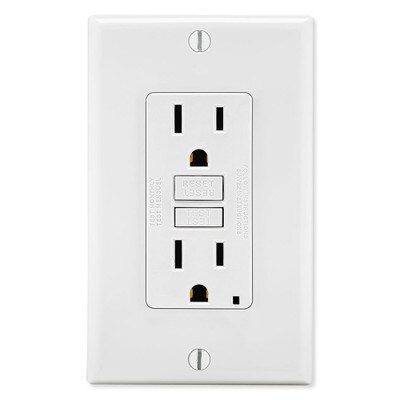

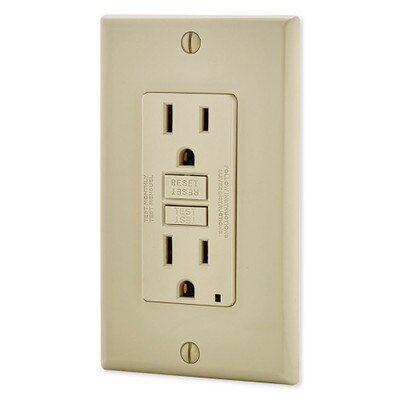

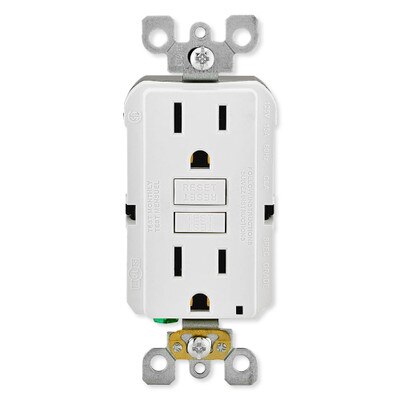

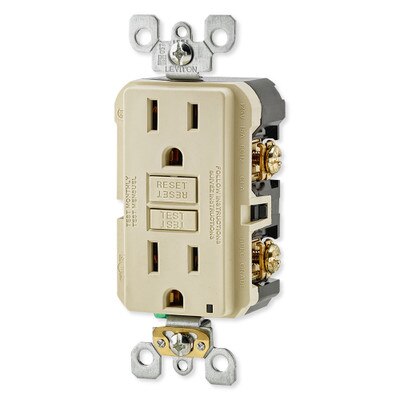

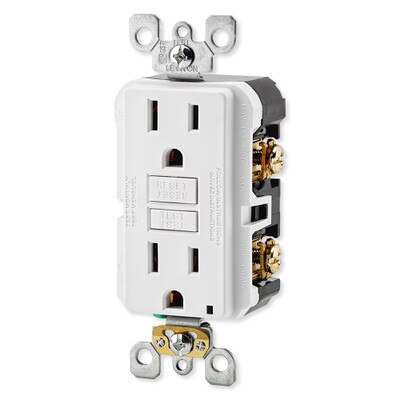

Leviton SmartlockPro Slim GFCI Receptacle, 15A

$23.73
SKU: LVGFNT1Fx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The SmartlockPro Self-Test GFCI brings you peace of mind with routine self-tests that ensure it can protect itself and plugged in devices from ground faults. It's slim design allows it to be installed in nearly any electrical box and its back and side terminals make installation quick and easy. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection. If the GFCI detects a problem, one or more of the following will occur:

  • Power will be denied (trip with the inability to reset)
  • Trip with the ability to reset, subject to the next auto-monitoring test cycle or repeatedly trip
  • Visual and/or audible indication
  • Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
  • Auto-monitoring and trip threshold exceeds the UL requirement
  • Self-tests within 3 seconds of powering on
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status Indicator LED Light displays power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Back and Side Terminals allow for easy wiring options
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clip
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Compatible with all Decora devices and wallplates; available in select Decora colors

Tech Specs

  • Part Number:
    • Ivory: GFNT1-FI
    • White: GFNT1-FW
  • Electrical Ratings:
    • Amperage: 15 A
    • Rated Voltage: 1 HP, 125 VAC
    • Grounding: Self-Grounding
    • NEMA: 5-15R
    • Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
    • Short Circuit Current Rating: 10KA
    • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
    • Trip Level: Class A, 5mA plus or minus 1mA
  • Environmental Specifications:
    • Flammability: Rated V-2 per UL 94
    • Operating Temperature: -35°C to +66°C ( -31°F to 150°F)
  • Material Specifications:
    • Body Material: Polycarbonate
    • Face Material: Thermoplastic
    • Grounding Screw: Plated Steel
    • Strap Material: Galvanized Steel
    • Terminal Screws: Plated Steel
    • Yoke: Zinc-Plated Steel
    • Clamps: Brass
    • Termination: Back & Side
    • Line Contacts: Brass Double Wipe .031 Thick
  • Mechanical Specifications:
    • Terminal Accommodation: 14-10 AWG
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Feature: Self-Test
    • Tamper Resistant: No
  • Standards and Certifications:
    • ANSI: C-73, CSA C22.2 No. 42, CSA-C22.2 No. 144.1-06: File LR-57811, Fed Spec WC-596, MIL-SPEC: A-A-55459-SB, NOM, UL498
  • Warranty: 2-Year Limited
