Leviton eXtreme High Flex Cat6 Patch Cord, 1'

$12.82
SKU: LV6H4601x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Leviton eXtreme High-Flex Cat 6 Patch Cords are designed to be used in Cat 6 / 1-Gigabit applications and all frequencies from 1 to 250 MHz. Patch cords offer flexible, high-density patching. Cables support high speed data applications. They reduce patch cord density in a 24-port patch panel by 38 percent when compared to typical Cat 6 patch cords.

Features:

  • Power over Ethernet (PoE and PoE+) compatible
  • Accommodates use in high-density switches, routers, and other electronics
  • Bend radius is a narrow 0.60 inches, versus 1.0 inch for typical Cat 6 patch cords
  • Snagless plug design with integrated strain-relief boot
  • Plug contacts rated to 2,500 mating cycles
  • Dual-rated cable jacket

Tech Specs

  • Part Number:

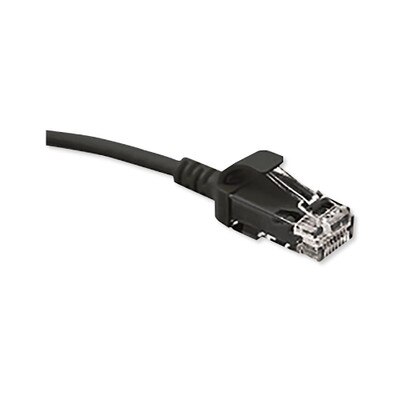

    • 6H460-1E: Black

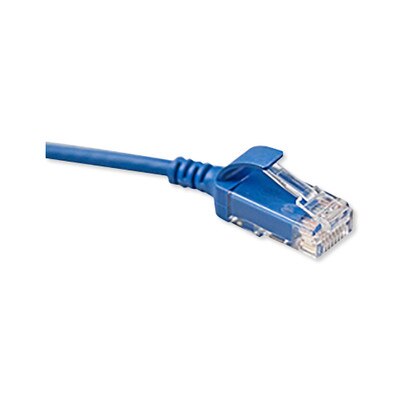

    • 6H460-1L: Blue

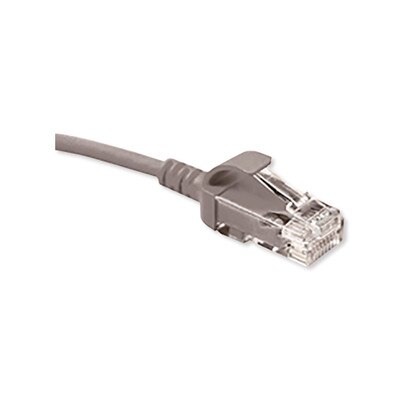

    • 6H460-1S: Gray
    • 6H460-1G: Green

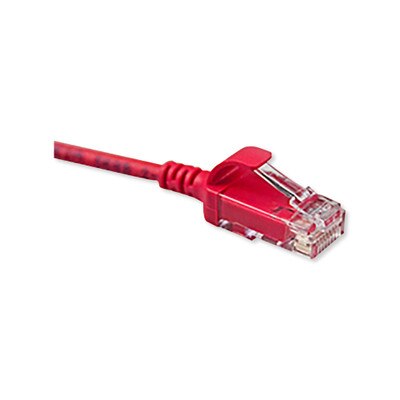

    • 6H460-1R: Red

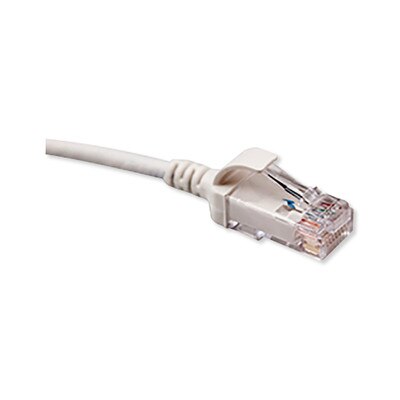

    • 6H460-1W: White

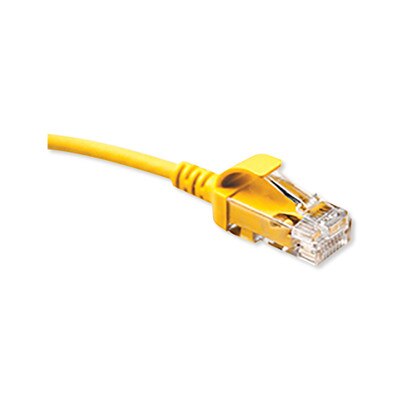

    • 6H460-1Y: Yellow
  • Dimensions: 1-20 feet (0.30 – 6.0m) in 1-foot, (0.3m) increments
  • Materials: 28-gauge, stranded UTP, standard modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated
  • Cable Outer Diameter: 0.15 inches (3.8mm)
  • Bend Radius: 0.60 inches (15.2mm)
  • Temperature (Installation): 0 °C to +50 °C
  • Temperature (Operating): -20 °C to +60 °C
  • STANDARDS & REGULATIONS:
    • ANSI/TIA-568.2-D Cat 6
    • ISO/IEC 11801-1 Class E
    • EN 50173-1 Class E
    • ANSI/TIA-1096-A
    • RoHS 2 compliant
    • UL 444 – CM
    • IEC 60332-1 [1,2] (2004-07), 60754, 61034
    • IEEE 802.3bt PoE: Type 1 (15.4 W) formerly 802.3af,
    • Type 2 (30 W) formerly 802.3at, Type 3 (60 W),
    • Type 4 (90 W)
    • Cisco UPoE (60 W), UPoE+ (90 W)
    • Power over HDBaseT™ PoH (95 W)
