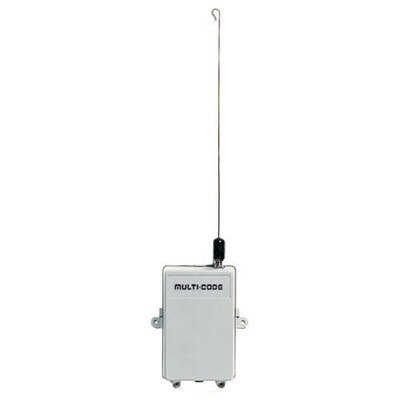

Linear Multi-Code Gate Receiver, 110V, 1-Channel
The Model 109920 1-Channel, 110V, Gate Receiver is designed for use in gate operator applications. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. If the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing, an external Model 106603 Remote Whip Antenna should be used.
- Operates on 115 VAC power
- One channel
- Includes whip antenna
The receiver includes a 24-volt AC power transformer that plugs directly into a 115 VAC power outlet. The normally open relay output can switch up to 1 amp @ 30 VAC. A 3-foot, 2-conductor wire lead with spade lugs is provided for attachment to the gate operator's radio activation terminals.
The receiver is programmed with a 10-position coding switch. When a Multi-Code transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator.
In The Box:
- Gate Receiver
- Whip Antenna
- Power Transformer
NOTE: The Model 109920 is compatible with 300 MHz Multi-Code transmitters only.
- Part Number: 109920
- Codes: 1,024 (set by dip switches)
- RF Frequency: 300 MHz
- Dimensions: 3.625(W) x 5.25(H) x 1.50(D) inches
- Warranty: 18 Months
