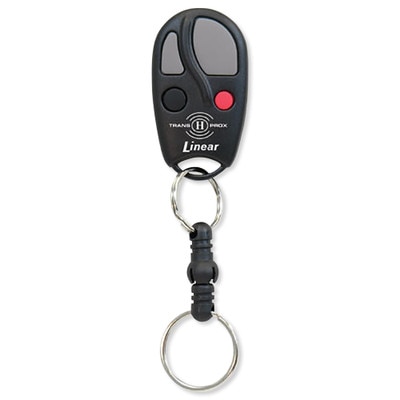

Linear TRANS PROX Block Coded Key Ring & 125 kHz Proximity Tag, 4-Channel

$33.00
SKU: LNACT34DH

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Linear TRANS PROX Block Coded Key Ring and 125 kHz Proximity Tag (4-Channel) is designed for use with Linear's access control products. It's a 4-channel device that includes a quick-disconnect key ring and lithium batteries with a five-year service life. A unique 10-second time-out feature prevents the system from being shut down by a single transmitter transmitting continuously.

The ACT-34DH is also designed with a 26-bit Wiegand interoperable with certain HID 125-kHz proximity card formats. The tag is compatible with the AM-DPR Proximity Reader, and waving the transmitter near the reader will request access from the system.

The transmitter is compatible with the MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of duplicating codes. And since the receiver learns each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used with a Linear access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of the block into the system. Facility codes can be selected to further customize the system.

In The Box:

  • Transmitter
  • Key Ring
  • Batteries

NOTE: The HID proximity tag is designed to work with the Linear AM-DPR HID reader (sold separately). Other branded 26-bit HID readers may be compatible, but not all have been tested.

Tech Specs

  • Part Number: ACT-34DH
  • Transmitter Frequency: 318 MHz
  • Transmitter Format: MegaCode
  • Number of Transmitter Codes: 1,000,000 plus ID codes, (15 facility codes)
  • Proximity Format: 125 KHz non-proprietary proximity, 26 bit Wiegand (TRANS PROX only)
  • Accessories: Quick-Disconnect Key Ring
  • Power: (2) 3V 2016-style batteries
  • Dimensions: 1.25(W) x 2.25(H) x 0.5(D) inches (38.1 x 57.15 x 12.7 mm)
  • Warranty: 2 Year
