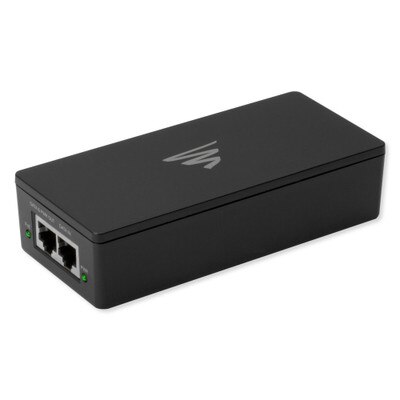

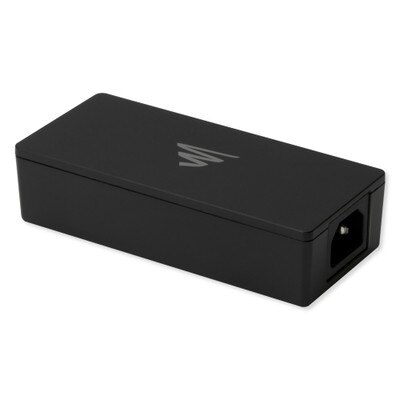

Luxul 1-Port PoE+ Injector


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The XPE-2500 Gigabit Power-over-Ethernet (PoE/PoE+) Injector is fully compliant with IEEE 802.3af/at standards. It delivers up to 30W of output power to the PoE port. Both data and electrical power can be simultaneously delivered to your 802.3af/at PoE enabled device through a single Ethernet cable. This eliminates the need of a separate power cable, makes installation easier and reduces cost.

  • Complies with IEEE 802.3af/at standards
  • Provide 10/100/1000Mbps connection rates
  • Simple "plug and play" installation
  • Delivers both data and power over a single Ethernet cable
  • Green design, low power consumption
  • Power Overload Protection
  • 100-240 AC wide-range voltage input, 51V DC output voltage
  • Compact size for ease of installation
  • Delivers data up to 330' (100 meters) away

In The Box:

  • Luxul Single Port Gigabit PoE/PoE+ Inject 30W
  • Power Cord
  • Quick Install Guide

NOTE: If the injector is connected to a device and the PoE LED does not illuminate, this is an indication the connected device is not PoE enabled or not a 802.3af/at compatible device. Data will still be transferred.

Tech Specs

  • Manufacturer Part #: XPE-2500
  • UPC: 729440674496
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3af/at standards
  • Output Voltage: 51V 0.6A
  • Output Power: PoE: 15.4W PoE+: 30W
  • Input Voltage: AC100-240V 0.8A 50 60Hz
  • Ports:
    • 2-10/100/1000Mbps RJ45
    • 1-Power Input
    • Cable: Cat5e or better
  • LED:
    • PoE: Indicates power is being passed to the Connected 802.3af/at PoE device
    • PWR: Power is connected to the PoE Injector
  • PoE LED:
    • On: Indicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device
    • Off: Indicates no power is being delivered to the connected device
    • Flashing: An error indicating a power fault
  • PWR LED:
    • On: Power is connected to the PoE Injector
    • Off: Injector is not receiving power
  • Data & Power Out: Delivers power and data (via Ethernet cable) to the connected PoE enabled device
  • Data In: Connects to your data source over Ethernet cable
  • Power: 100-240V input voltage
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 0% to 90% (Relative Humidity Non-condensing)
  • Storage Humidity: 10% to 90% (Relative Humidity Non-condensing)
  • Dimensions: 5.25 (L) x 2.375 (W) x 1.3125 (H) inches (133.35 x 60.32 x 33.34 mm)
  • Certification: FCC, CE, RoHS
  • Warranty: 3 Year Limited
