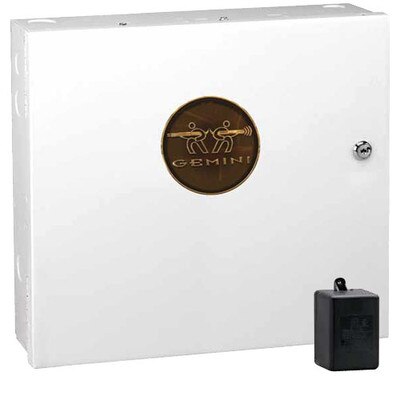

Napco Gemini P9600 Security Panel, 8-96 Zones

$343.34
SKU: NPGEMP9600

IN STOCK! Ships same business day if ordered before 3pm PT

Shop More From Napco Security

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Powerful multi-tasking hybrid control panel. Feature-rich for security applications and home automation integration.

Features:

  • 8 to 96 hardwire zones/points including 8 2-wire fire zones
  • Fuseless, maintenance-free operation
  • Up to 96 user codes
  • Up to 8 areas
  • 3 on-board relay outputs; expandable to 96
  • 1 on-board programmable lug
  • Up to 4 RF receivers
  • Up to 15 keypads
  • Up to 64 X-10 devices supported
  • 800 event log
  • Auto arm/disarm
  • 255 event scheduler
  • Supports GEM-automation alarm-to-pc automation software package interface
  • Supports GEM-Developer Development Professional's Protocol for custom integration.
  • Supports Phast automation systems with GEM-PHASTPAK interface
  • Permits permanent panel-port connection to automation hubs using GEM-RS232 interface

All Gemini hybrid controls feature:

  • Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules (except GEM-P800)
  • Up/Downloading, including unique PC-preset unattended method
  • EZ-Programming mode at keypad
  • Choice of Gemini RF receivers and transmitters
  • Multi-stage lightning protection
  • Event log with open/close suppression
  • NetLink intranet/internet alarm reporting option
  • X-10 Support with optional GEM-X10 interface
  • Telco line cut supervision
  • Support for VOIP (voice over internet protocol) communications
  • Support all major communication formats and secondary pager format
  • SIA CP01 compliant versions available
  • Include transformer

Tech Specs

  • Operating temperature: 32 to 120 degrees F (0 to 49 degrees C)
  • Input power: 16.5VAC via class 2 plug-in 40VA transformer, supplied
  • Loop voltage: 10-13VAC
  • Loop current: 2.5mA with 2.2ohm end-of-line resistor (model EOL2.2K); 5mA for 2-wire smoke detector zones
  • Loop resistance: 300W max.; 50W for 2-wire smoke detector zones
  • Relay outputs (burglary; reset; aux): wet, 12VDC, 1.2A max.; Dry (cut related jumper for dry contacts), SPDT contacts 24VDC, 2A, 0:6 PF
  • Auxiliary power output: 12VDC regulated
  • Remote power output: 12VDC regulated (for keypads), 750 mA combined standby current (remote power + aux. power + reset relay power)
  • Standby time: residential fire/burglary and commercial burglary, 4 hours minimum
  • EZM module: GEM-EZM8: input, 50mA (including PGM output) PGM output: 5mA, 12V special application
  • Keypad current: GEM-RP1CAE2: 100mA; 35mA if backlighting is disabled (cut W1, W2, W3)
  • PGM output: 5mA, 12V special
