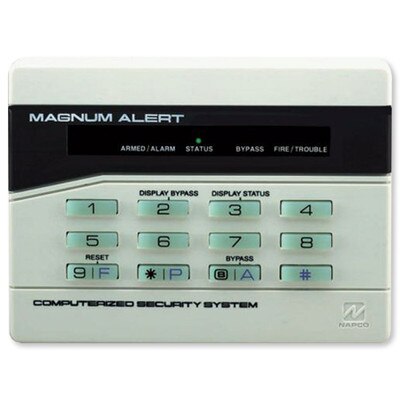

Napco Magnum RP1054E Digital Display Keypad
Product Description
The RP1054e is a user-friendly backlit keypad designed for use with Napco MA1000e, MA1008e and MA1010 control panels, and for replacement purposes in MA854, MA1008-series and MA1010-series panels. A large 7-segment alphanumeric display functions as a readout for control-panel information and zone identification. Installation is quick and easy on only four wires.
Tech Specs
- Compatible Control Panels: Napco MA1000e, MA1008e and MA1010 (replacement for MA854, MA1008-series and MA1010-series panels)
- Operating Voltage: 9 to 13VDC (supplied by control panel)
- Current: 40mA typical
- Wiring Length: 1 keypad, 1,000 feet max.; 5 keypads, 300 feet max. (using # 22AWG wire)
- Dimensions: 4-3/8(H) x 5-7/8(W) x 1-1/16(D) inches
