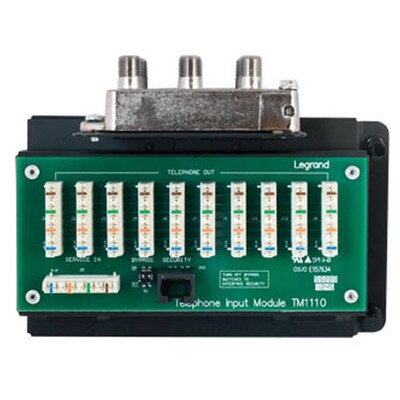

On-Q/Legrand 10x8 Phone & Video Combo Module, 110 with RJ31X (1.675Ghz)
Product Description
Meeting the present and future demands of connected, Web-savvy residential customers, this 10x8 voice and video combo module incorporates coax networking over MoCA into its 8 digital video ports, layering high-speed Internet over standard cable television signals.
The CO2110-V1 is UL listed, 110 Punchdown terminated, and includes a RJ31X line seizure port for home security configuration. The Antronix video splitter exceeds the performance specifications of major cable service providers and its nickel plated housing provides excellent corrosion resistance in even challenging outdoor conditions.
The module ships with all needed corrosion-resistant infrastructure components. To enable easy access to any termination port during installation, the platform for the Antronix video splitter detaches from the telecom bracket. When finished, the attached platform holds tight into a compact form factor, maximizing available space in the enclosure for other components.
- 8 way passive digital HDTV cable splitter, Digital Cable System approved
- Coax Networking Support
- RJ31X Supports Security System Interruption of Phone Calls
- 6kV ring wave Surge Protection on Video Ports
- UL listed
Tech Specs
- Cable Type: Cat 5/5e/6, Coaxial
- Color: Black
- Connection Type: 110 Punchdown, F Connector, RJ31X
- Connection Method: IDC(10), F Connector(8), RJ31X(1)
- Frequency: 5-1675 MHz
- Jack Connectors: RJ45
- Material: 18 Gauge Cold Rolled Steel
- Operating Temperature: -40 to 140°F
- Output Impedance: Splitter – Nominal impedance 75 Ohms
- Supported Standards: Optimized performance in MoCA band, ANSI/SCTE 01 Compliant ECT F-port
- Mounting: Enclosure
- Mounting Hardware Included: Yes
- Shape: Rectangular
- Dimensions: 3(D) x 5(H) x 6(W) inches
- UL Standard: Yes
