On-Q/Legrand 6x4 Basic Phone & Video Combo Kit
Product Description

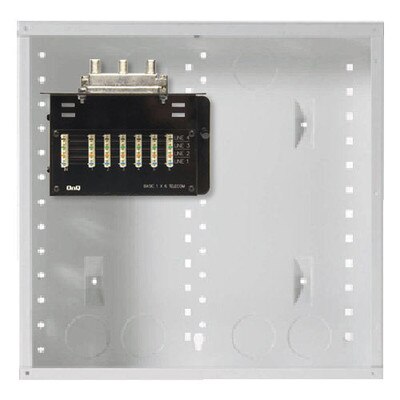

Kit includes a 14-inch enclosure and a 6x4 Basic Combination Module (364400-04) allowing distribution of up to nine telecom outlets with up to six telecom outlets with up to four lines each and incoming video signals to up to four television outlets. The Kit features 18 inches of unused rail space for additional On-Q modules for system expansion.
- Space-saving combination module distributes telephone and video signals
- UL Listed
- Can be either surface mount or flush mount
- Integrated ground screw
- Central hub for distribution and management of incoming services
- Features 18 inches of unused rail space for additional On-Q/Legrand modules for system expansion
Tech Specs
- Cable Type: Cat5e and RG6
- Color: White/Black
- Finish: Powder Coat
- Type: Telecom/Video Module w/Enclosure
- Connection Method: 110 Punchdown and F
- Humidity: 90 percent relative humidity (non-condensing)
- Material: CRS
- Mounting: Surface or Flush
- Operating Temperature: 32 to 122° F (0 to 50° C)
- Output And Line Out Connection: 9 Telecom x 6 Video
- Installation Location: In Wall
- Dimensions: 14.1(H) x 14.3(W) x 3.7(D) inches (35.8 x 36.3 x 9.4 cm)
- CSA Listing Info: CSA-C22.2 No. 144.1 (2006), CAN/CSA-C22.2 No. 182.4-1990
- CSA Standard: Yes
- cU Lus: Yes
- UL Listing No: ANSI/UL 1863, ANSI/UL 985, ULC-S545, ANSI/UL 1023
- UL Standard: Yes
