On-Q/Legrand 8" MDU Enclosure Kit with Cat5e Data Kit

$83.87
SKU: OQEN0803

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

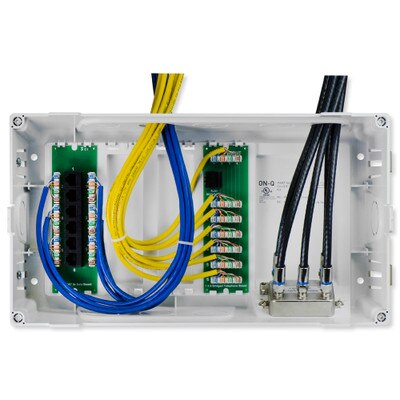

This 8-inch MDU Enclosure Kit (Cat5e) provides a repetitive and cost effective structured wiring solution for small home or multi-dwelling units (MDU). It provides distribution of six phone, four video, and six data locations.

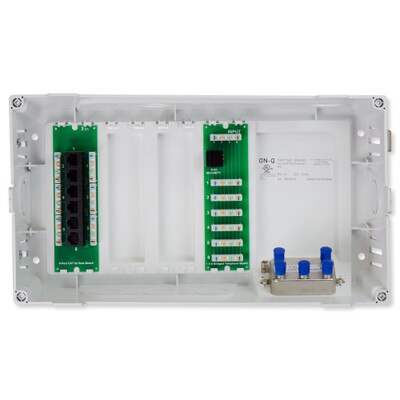

  • An enclosure and cover is included in the kit, as well as an installed 6-way phone module (TM0106), a 4-way coax splitter (VM0204), and a 6 port Cat5e data board (AC0506)
  • Can be used in flush and surface-mount installations with mounting tabs and drywall depth indicators
  • Knockouts with screwdriver holes for easy removal
  • Includes four self-tapping screws for mounting and optional hardware to lock the cover
  • Cable guard included for protecting enclosure contents from dust and paint during construction

In The Box:

  • MDU Enclosure w/Snap-On Cover (EN0800)
  • 6-Port Cat5e Data Board (AC0506)
  • 6-Way Phone Module (TM0106)
  • 4-Way Coax Splitter (VM0204)
  • Lock Hardware
  • (4) Self-Tapping Screws

Tech Specs

Part Number: EN0803

MDU Enclosure (EN0800)

  • Color: White
  • Material: ABS molded plastic
  • Dimensions: 8.02(H) x 14.38(W) x 3.71(D) inches (203.7 x 365.2 x 94.2 mm)
  • Approvals: cULus Listed for communications equipment

6-Port Cat5e Data Board (AC0506)

  • Cable Type: Full Duplex Gigabit
  • Number of Ports: 6
  • Connection Type: RJ45/IDC
  • Type: Low Voltage, Data Network Component
  • Special Features: Punch down style termination, 6-Port, RJ45 Data Ports
  • Humidity: 10% - 90% Relative Humidity (non-condensing)
  • Jack Connectors: Cat5e RJ45
  • Material: Plastic
  • Mounting: Custom MDU enclosure mountable
  • Operating Temperature: -4° to 167° F (-20° to 75° C)
  • Power Requirements: None
  • Supported Standards: ANSI/TIA/EIA-568-A
  • Equipment Type: Full Duplex Ethernet
  • Certifications: RoHS

1x6 Telephone Board With RJ31X (TM0106)

  • Number of Ports: 6
  • Type: LV Telephone Distribution Module
  • Special Features: RJ31X Line seizure port, 110 Punchdown termination
  • Style: Single-Bay Module
  • Mounting: Snap-in Module
  • Rack Units: Custom MDU enclosure mountable
  • Dimensions: 5.875(W) x 2.875(H) x 1(D) inches (149 x 73 x 25 mm)
  • Certifications: RoHS

4-Way Vertical Coax Splitter, 2 GHz (VM0204)

  • Finish: Nickel-Plated with Tin Sealed
  • Number of Ports: 4
  • Connection Type: F-Connector, female
  • Type: Low Voltage, Coax Splitter, Single-Bay
  • Special Features: 4-way Vertical Splitter
  • Style: Single-Bay Module
  • Frequency: Bandwidth: 1000~2050 MHz
  • Insertion Loss: 10.5 dB max
  • Return Loss Input: 15 dB min
  • Return Loss Output: 12 dB min
  • Dimensions: 2.91(W) x 1.62(H) x 1.22(D) inches (74 x 41 x 31 mm)
  • Certifications: RoHS
