On-Q/Legrand 8" MDU Enclosure Kit with Cat6 Data Kit
Product Description

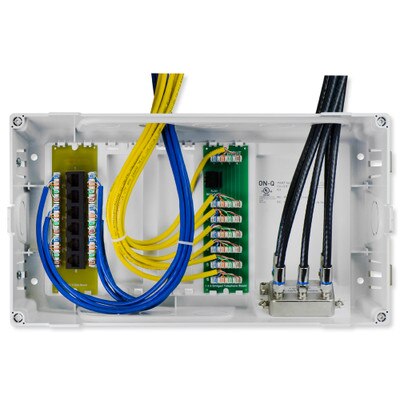

This 8-inch MDU Enclosure Kit (Cat6) provides a repetitive and cost effective structured wiring solution for small home or multi-dwelling units (MDU). It provides distribution of six phone, four video, and six data locations.

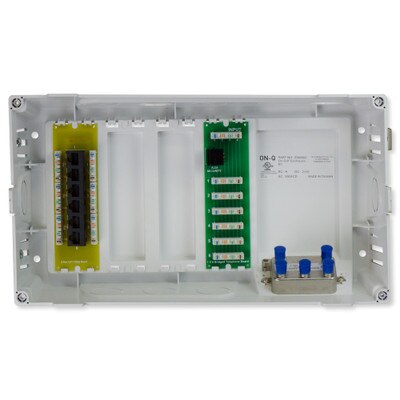

- An enclosure and cover is included in the kit, as well as an installed 6-way phone module (TM0106), a 4-way coax splitter (VM0204), and a 6 port Cat6 data board (AC0606)
- Can be used in flush and surface-mount installations with mounting tabs and drywall depth indicators
- Knockouts with screwdriver holes for easy removal
- Includes four self-tapping screws for mounting and optional hardware to lock the cover
- Cable guard included for protecting enclosure contents from dust and paint during construction
In The Box:
- MDU Enclosure w/Snap-On Cover (EN0800)
- 6-Port CatC Data Board (AC0606)
- 6-Way Phone Module (TM0106)
- 4-Way Coax Splitter (VM0204)
- Lock Hardware
- (4) Self-Tapping Screws
Tech Specs
Part Number: EN0804
MDU Enclosure (EN0800)
- Color: White
- Material: ABS molded plastic
- Dimensions: 8.02(H) x 14.38(W) x 3.71(D) inches (203.7 x 365.2 x 94.2 mm)
- Approvals: cULus Listed for communications equipment
6-Port Cat6 Data Board (AC0606)
- Cable Type: Full Duplex Gigabit
- Number of Ports: 6
- Connection Type: RJ45/IDC
- Type: Low Voltage, Data Network Component
- Special Features: Punch down style termination, 6-Port, RJ45 Data Ports
- Humidity: 10% - 90% Relative Humidity (non-condensing)
- Jack Connectors: Cat5e RJ45
- Material: Plastic
- Mounting: Custom MDU enclosure mountable
- Operating Temperature: -4° to 167° F (-20° to 75° C)
- Power Requirements: None
- Supported Standards: ANSI/TIA/EIA-568-A
- Equipment Type: Full Duplex Ethernet
- Certifications: RoHS
1x6 Telephone Board With RJ31X (TM0106)
- Number of Ports: 6
- Type: LV Telephone Distribution Module
- Special Features: RJ31X Line seizure port, 110 Punchdown termination
- Style: Single-Bay Module
- Mounting: Snap-in Module
- Rack Units: Custom MDU enclosure mountable
- Dimensions: 5.875(W) x 2.875(H) x 1(D) inches (149 x 73 x 25 mm)
- Certifications: RoHS
4-Way Vertical Coax Splitter, 2 GHz (VM0204)
- Finish: Nickel-Plated with Tin Sealed
- Number of Ports: 4
- Connection Type: F-Connector, female
- Type: Low Voltage, Coax Splitter, Single-Bay
- Special Features: 4-way Vertical Splitter
- Style: Single-Bay Module
- Frequency: Bandwidth: 1000~2050 MHz
- Insertion Loss: 10.5 dB max
- Return Loss Input: 15 dB min
- Return Loss Output: 12 dB min
- Dimensions: 2.91(W) x 1.62(H) x 1.22(D) inches (74 x 41 x 31 mm)
- Certifications: RoHS
