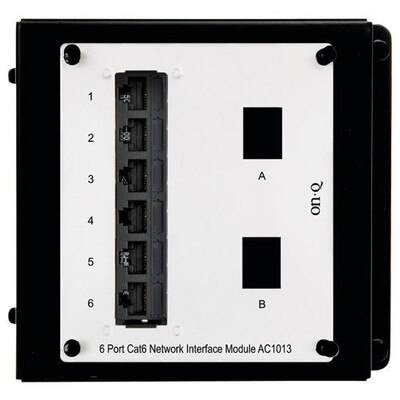

On-Q/Legrand 6-Port Cat6 Network Interface Module
Product Description
Easily switch an outlet from Voice to Data or from Data to Voice with this Cat6 Network Interface Module.
- RJ45 ports labeled 1 thru 6.
- Includes two blank keystone openings to add optional RJ45 jack and create an ADO.
- Keystone openings labeled A and B.
Tech Specs
- Part Number: AC1013
- Cable Type: Cat6
- Color: Platinum Grey
- Finish: Powder Coat
- Footprint: Double Bay
- Connection Type: RJ45 and IDC Punchdown Block
- Type: Network Interface
- Input Plug Type: RJ45 Male
- Connector Type:
- End One: RJ45
- End Two: IDC Punchdown
- Material: 18 Gauge Cold Rolled Steel
- Mounting: Enclosure
- Shape: Rectangular
- Receptacle Type: RJ45 Female
- Number of Receptacles: 6
- Mounting Hardware Included: Plungers/Grommets
- Dimensions: 6(H) x 5.9(W) x 2.1(D) inches (15.2 x 15 x 5.2 cm)
- Warranty: 1 Year
