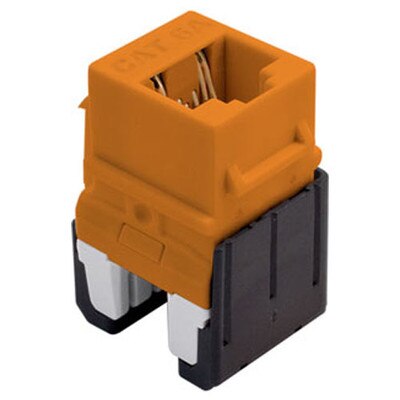

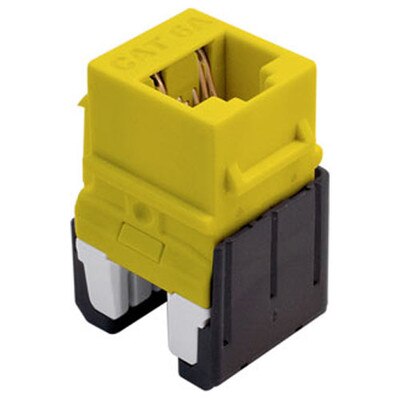

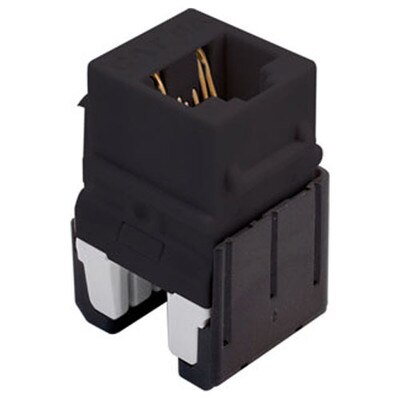

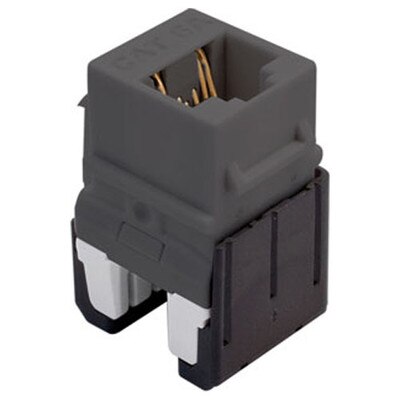

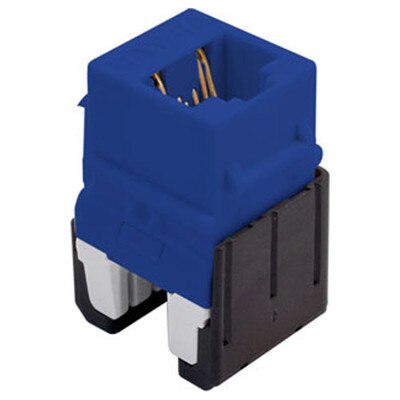

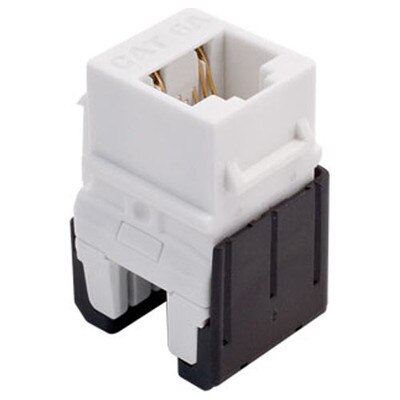

On-Q/Legrand Quick Connect Cat6a RJ45 Keystone Snap-In Connector
Product Description
- Easily terminate all four pairs using Legrand Punchdown tool (Part Number AC3400)
- RJ45 Inserts can be terminated with any 110 punchdown tool
Tech Specs
- Cable Type: Cat 6a
- Color: Orange
- Termination: 8P8C, Phosphor Bronze alloy plated with 50 microinches of Gold
- Type: Keystone Insert
- Housing Material: High Impact, Flame-Retardant Plastic
- Connector Type
- End One: RJ45 Female
- End Two: Punchdown
- Flammability Rating: UL 94V-0
- Mounting: Wallplate or Strap
- Wire Gauge: 22 – 24 AWG
- Receptacle Type: RJ45 Female
- Number Of Receptacles: 1
- Input Plug Type: RJ45
- ETL Standard: Yes
- Dimensions: 0.76(H) x 0.665(W) x 1.21(D) inches (19.3 x 16.9 x 30.8 mm)
