On-Q/Legrand Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate, 9"
Product Description

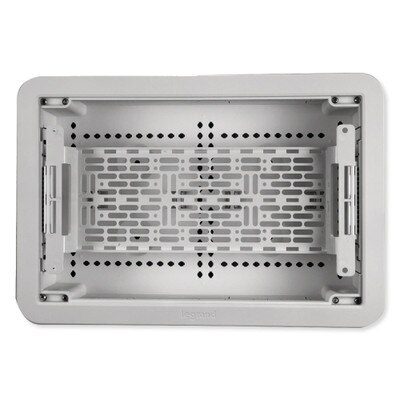

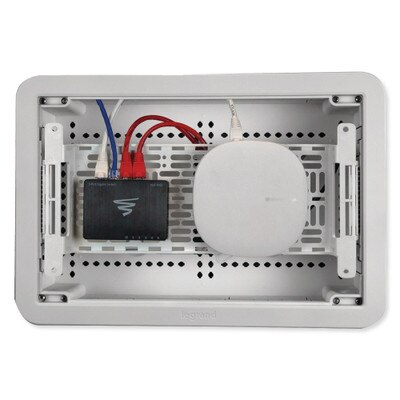

The On-Q/Legrand 9-in Dual-Purpose In-Wall Enclosure stores structured wiring and AV components. It is constructed with a Wi-Fi transparent material that allows wireless components and AV devices to be safely placed within the enclosure behind point-of-use locations, like directly behind a TV or other media centers. It also includes a removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure. It can also be used for structured wiring purposes, as smaller-sized options in the existing line of On-Q enhanced structured wiring enclosures. The ENP0905-NA-V1 is compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more. Includes a 5-in elevated mounting plate, cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.
In The Box:
- In-Wall Enclosure
- Cover
- Elevated Mounting Plate
- Trim Ring
- Drywall Clips
Tech Specs
- Part Number: ENP0905-NA-V1
- UPC: 804428434139
- Material: ABS Plastic
- Color: White
- Compatibility: Paintable with Rust-Oleum paint for plastic or equivalent
- Thickness: 0.1 in
- Frame: Injection-molded plastic
- Operating Temperature: 32° to 122° F (0° to 50° C)
- Operating Humidity (non-condensing): 0 to 93%
- Dimensions: 15.9 (W) x 10.87 (H) x 4.09 (D) inches (404 x 276 x 104 mm)
- Certifications: RoHS
Product Docs
- On-Q/Legrand Dual-Purpose In-Wall Enclosure Flyer
- On-Q/Legrand ENP0905-NA-V1 9-in Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate Specs
- On-Q/Legrand In-Wall Enclosure for Recessed AV Component Storage and Media Distribution Instructions
- On-Q/Legrand 9 In. Dual-Purpose In-Wall Enclosure Illustration
- On-Q/Legrand In-Wall Enclosure for Recessed AV Component Storage and Media Distribution Diagram
