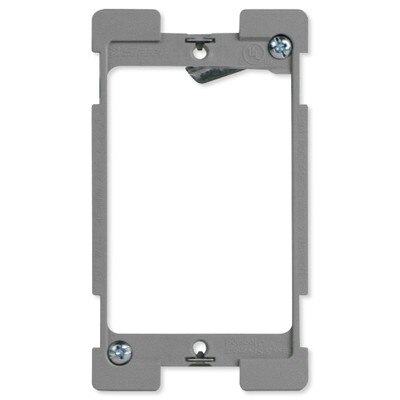

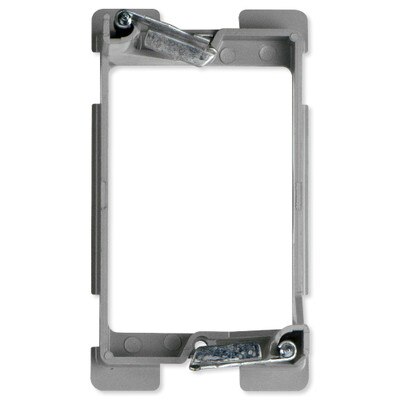

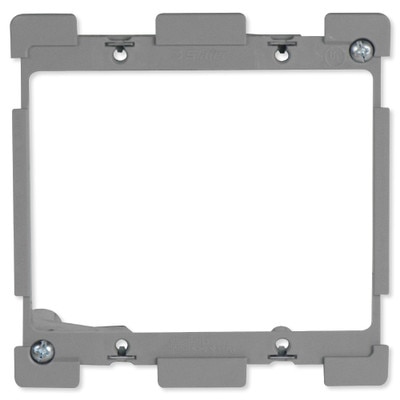

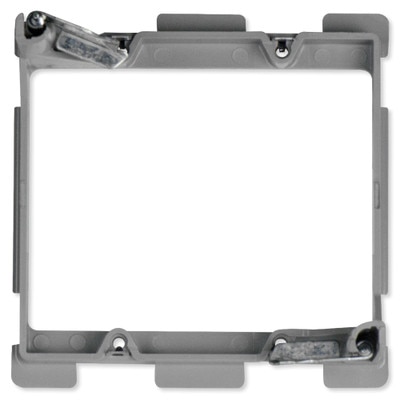

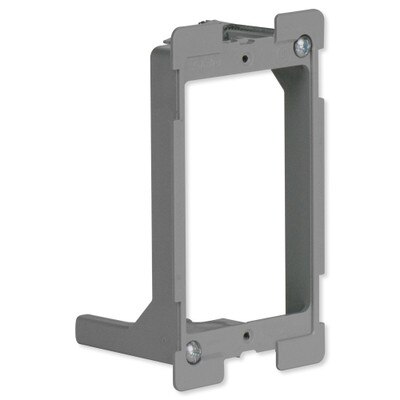

On-Q/Legrand Low-Voltage Swing Bracket with Quick/Click
Product Description
The 1-Gang Low Voltage Swing Bracket with Quick/Click® is ideal for use in single and multi-gang openings and low voltage installations such as keystone wall plates and audio keypads. Intended for new construction projects, this bracket installs quickly and easily with the Quick/Click® feature. The bracket features an open back and uses reliable metallic swing brackets to clamp bracket in place.
Timesaving Quick/Click technology mounts devices in a single tap, and metal swing brackets hold retrofit applications in place to combat drywall pull-outs.
Features:
- Speed up installation times with Quick/Click® technology, the fastest way to secure LV devices
- Rigid plastic design retains shape for ease of alignment during installation
- Reliable, metallic wings securely clamp bracket in place
- Spacious opening accommodates large devices and facilitates wiring process
Tech Specs
- Part Number:
- 1-Gang: SLV1W
- 2-Gang: SLV2W
- 3-Gang: SLV3W
- Color: Gray
- Material: Cast Alloy
- Operating Temperature: -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius)
- Dimensions:
- 1 Gang: 4.2 (H) x 2.38 (W) x 1.91 (D) inches
- 2 Gang: 4.2 (H) x 4.2 (W) x 1.91 (D) inches
- 3 Gang: 4.2 (H) x 6.1 (W) x 1.91 (D) inches
- Standards and Certifications: RoHS, UL Standard
