On-Q/Legrand Stackable Enclosure with Knock-Outs
Product Description
The EN1485 series enclosures include five knockouts on the top of the enclosure. They are also vertically stackable to allow cable passthrough between any two ENxx85 enclosures. For Fiber to the Home (FTTH) applications, it will fit ONTs of 3.6" depth or less.
- Includes five openings on the top of the enclosure with knockouts
- Stackable design allows for connection of two systems
- Cover not included
- In FTTH applications, it fits ONTs of 3.6" depth or less. In 28" and 42" enclosures, 2.5" can be added to depth with enclosure extender
- UL listed
- Made in the USA
Tech Specs
- Part Number: OQENxx85
- Color: Glossy White
- Finish: Powder Coat
- Type: Enclosure
- Humidity: 90 percent relative (non-condensing)
- Material: CRS
- Installation Location: In-Wall
- Mounting: Surface or Flush
- Operating Temperature: 32° to 122°F (0° to 50°C)
- Dimensions:

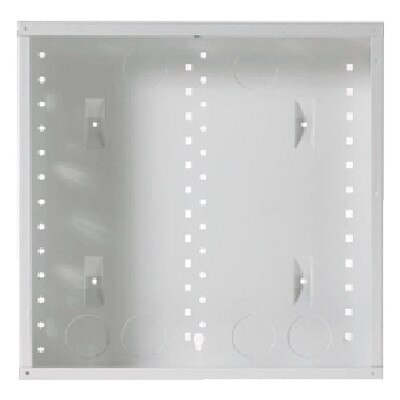

- 14": 14.2(W) x 14.1(H) x 3.7(D) inches (36.1 x 35.8 x 9.4 cm)
- 20": 14.3(W) x 20.1(H) x 3.7(D) inches (36.3 x 51.1 x 9.4 cm)

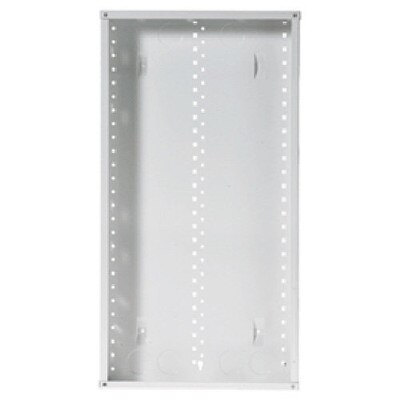

- 28": 14.3(W) x 28.1(H) x 3.7(D) inches (36.3 x 71.4 x 9.4 cm)

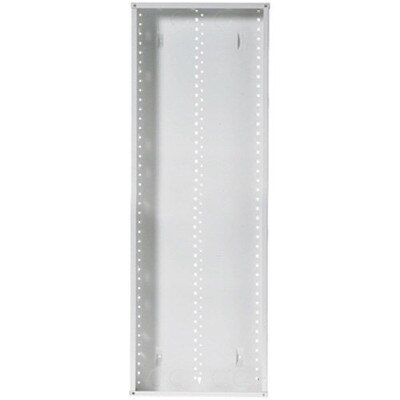

- 42": 14.3(W) x 42.1(H) x 3.7(D) inches (36.3 x 106.9 x 9.4 cm)
- Thickness: 20 Gauge
- cULus: Yes
- UN SPS C: 43223306
