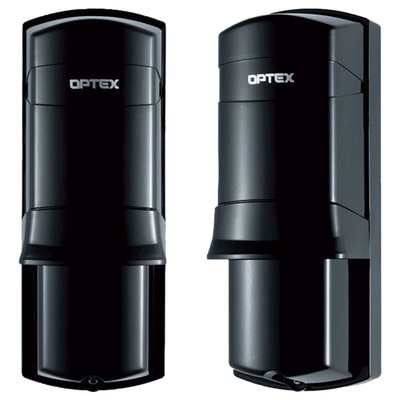

Optex Outdoor Dual Beam Photoelectric Detector, 100'

$219.44
SKU: OPAX100TF

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The AX-100TF short range photoelectric detector is compact in design with selectable beam frequencies. The selectable beam frequencies can be used to avoid unwanted crosstalk that can occur when using multiple photobeams over long distances or for beam stacking applications. The AX-100TF also carries the IP65 high durable structure, which prevents water, dust or bugs from getting into the unit. The ideal optical pitch design reduces false alarms due to accidental beam interruption by falling leaves, birds, and so on. These features deliver performance with higher reliability in severe outdoor environmental condition.

  • Selectable 4 channel beam frequencies
  • 4 step alarm indicator LED
  • Environmental disqualification circuit
  • IP65 structure
  • Lightning and surge protection
  • Anti-frost hood cover
  • 99 percent beam blocking stability
  • A.G.C. circuit
  • Adjustable beam interruption time

In The Box:

  • Transmitter
  • Receiver
  • 4 x Pole brackets
  • 8 x Mounting plate lock screws
  • 8 x Pole lock screws
  • 4 x Wall mounting screws

Tech Specs

  • Part Number: AX-100TF
  • Detection Method: Infrared beam interruption detection
  • Maximum Detection Range: 100 feet (30m)
  • Maximum Arrival Range: 1,000 feet (300m)
  • Interruption Period: Selectable between 50, 100, 250, and 500m seconds
  • Selectable Beam Frequency: 4 channel
  • Power Supply: 10.5 – 28V DC
  • Current Consumption (transmitter + receiver): 44mA (max.)
  • Alarm Period: 2 seconds (±1) nominal
  • Alarm Output: N.C./N.O. 28V DC, 0.2A (max.)
  • D.Q. Output: N.C. 28V DC, 0.2A (max.)
  • Tamper Switch: Opens when cover is removed at 28V DC, 0.2A max.
  • Operating Temperature: -31° to 140°F (-35° to 60°C); Use the optional heating unit (HU-3) in conditions of -13°F (-25°C) or below.
  • Operating Humidity: 95 percent max.
  • Alignment Angle: ± 90° Horizontal, ± 5° Vertical
  • Mounting: Wall and pole mounting
  • Weight (transmitter + receiver): 24.7 ounces (700g)
  • Housing Protection (EN 00529): IP65
  • Dimensions: 6.7(H) x 2.6(W) x 2.7(D) inches (170 x 65 x 69.5 mm)
