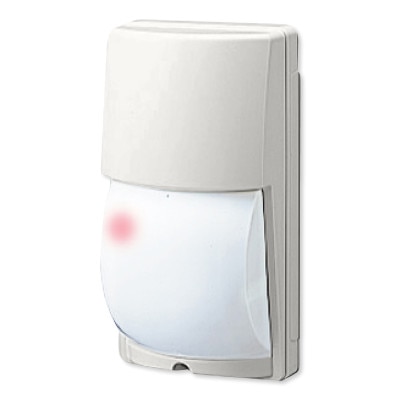

Optex Outdoor PIR Motion Sensor, Long-Range Model

$93.16
SKU: OPLX802N

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The LX Series is robust, weatherproof and specifically designed for short-range outdoor applications. With wide-angle and long-range options, advanced features such as sensitivity and range adjustment and a built-in light sensor providing day and night modes, the LX-402/802N Series is highly versatile. An ingenious mirror assembly provides a pet alley configuration and Double Conductive Shielding ensures that the sensor is resistant to interference from foreign light sources such as the sun and car headlights.

  • Double conductive shielding
  • Selectable detection patterns (pet alley or multi-level)
  • Area-masking strips (LX-402 only)
  • Sensitivity selection switch (high, mid and low)
  • Selectable pulse count (test or 2)
  • Day and night modes

Tech Specs

  • Coverage: 24 x 2 meters, long range

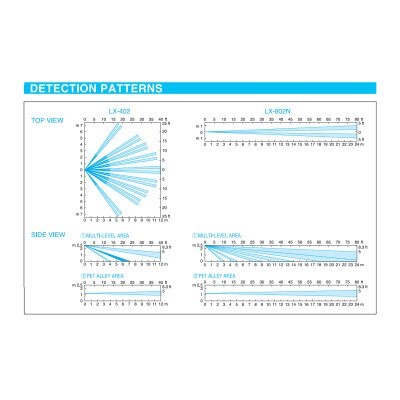

  • Detection Zones
    • Multi-level area: 12 zones
    • Pet alley area: 4 zones
  • Sensitivity: Selectable 3 position (High / Middle / Low)
  • Detectable Speed: 0.3 to 1.0 meters/second
  • Power supply: 10.8 to 13.2 VDC
  • Current consumption: 25mA max.
  • Alarm period: 2 ±1 second (delay timer)
  • Alarm output: N.C. N.O. 28V DC 0.2A max.
  • Tamper switch: N.C. opens when cover is removed
  • Pulse count: 2 (20 ±5 seconds) or TEST (1 pulse)
  • Warm up period: Approx. 60 sec.
  • LED indicator: LED lights during detection
  • Operating temperature: -20 to 50°C
  • Environmental humidity: 95 percent max.
  • Mounting height
    • Multi-level area: 2.5m max.
    • Pet alley area: 1.2 to 1.5m
  • Mounting: Wall
  • Weight: 190g
  • Dimensions: 141(H) x 74.8(W) x 57.5(D) mm
  • Weatherproof: IP54
