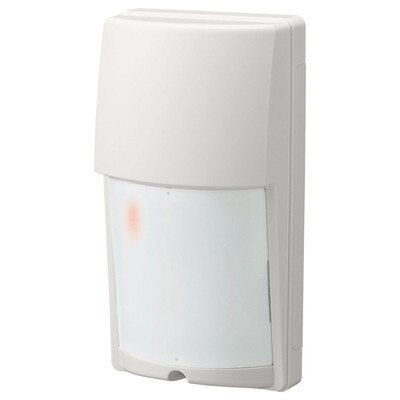

Optex Outdoor PIR Motion Sensor, Standard-Range Model

$90.42
SKU: OPLX402

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The LX-402 is robust, weatherproof and specifically designed for short-range outdoor applications, such as triggering lighting or cameras. With advanced features such as sensitivity and range adjustment and a built-in light sensor providing day and night modes, the LX-402 is highly versatile. With Double Conductive Shielding, the LX-402 is resistant to interference from foreign light sources such as the sun and car headlights.

Features:

  • Used to trigger lighting or camera
  • Double conductive shielding
  • Selectable detection patterns (Pet Alley or Multi-Level)
  • Area-masking strips
  • Sensitivity selection switch
  • Selectable pulse count (test or 2)
  • Day and night modes

Tech Specs

  • Detection Method: Passive Infrared
  • Detection Area: 40 x 50 feet (12 x 15 m) 120° wide
  • Coverage:
    • Multi-level area: 40 zones
    • Pet alley area: 18 zones
  • Mounting:
    • Multi-level area: 8.3 feet (2.5 m)
    • Pet alley area: 4 to 5 feet (1.2 to 1.5 m)
  • Detection Speed: 1 to 3.3 feet/second (0.3 to 1.0 m/sec.)
  • Sensitivity Adjustment: Selectable 3 position (H, M, L)
  • LED Indicator: LED lights during detection
  • Alarm Period: 2 seconds ±1 sec. (delay timer)
  • Alarm Output: NC. NO. 28VDC 0.2A max.
  • Tamper Switch: Opens when cover removed.
  • Pulse Count: 2 (20 ±5 sec.) or TEST (1 pulse)
  • Day/Night Mode Adjustment: Approx. 10 to 100,000 lux
  • Warm-Up Period: Approx. 60 seconds
  • Power Input: 10.8 to 13.2V DC
  • Current Draw: 25mA max.
  • Installation Place: Wall (indoor/outdoor)
  • Operating Temperature: -20° to 50°C (-4° to 122°F)
  • Environmental Humidity: 95 percent max.
  • Weight: 6 ounces (170g)
  • IP Rating: IP54
  • Accessory: Masking strips (LX-402 only), mounting screw, sponge
