PCS HAI Relay Wall Switch, 15A


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The HAI-WS1R-40A00 Wall Switch/Relay replaces a standard switch with a UPB and HAI compatible relay switch that can support loads up to 15A. This switch provides instant-on/off ability to handle heavier loads such as large lighting fixtures, fans, motors, pumps, and more. The switch is available in seven colors: white, light almond, almond, ivory, brown, gray, and black to match practically any décor.


  • Built-in relay provides instant-on/off ability
  • Limited not only to lighting control, but also other house appliances (up to 15A rating)

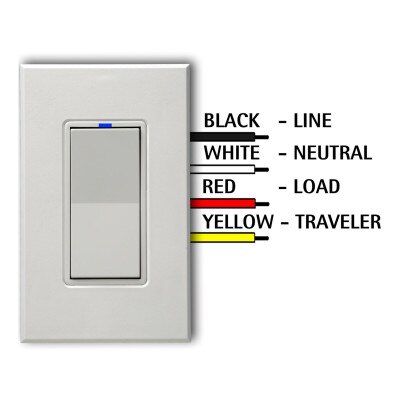

  • Works alongside the RWS (Remote Wall Switch) by using a traveler wire
  • Use with heavy loads up to 15A, Motors, Ceiling fans, Pumps etc.
  • Contains HAI firmware and will be recognized as a HAI product by the PC-Access software and HAI OMNI
  • Can be configured using the UPB configuration program UPStart

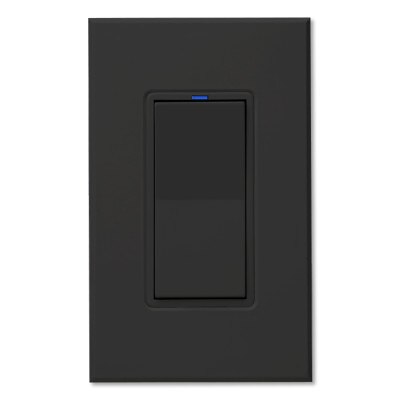

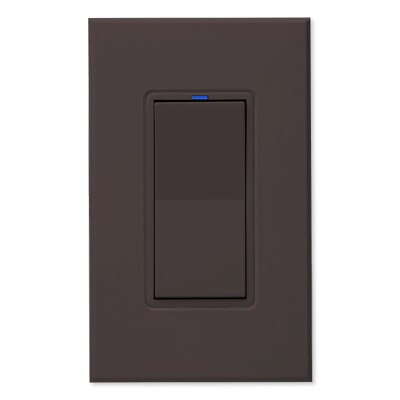

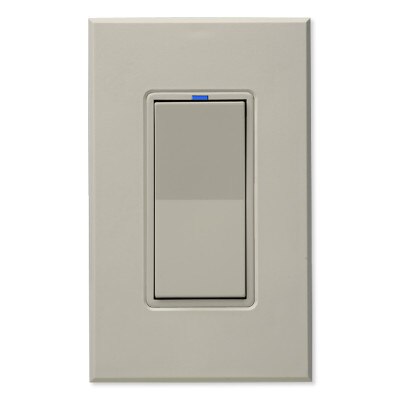

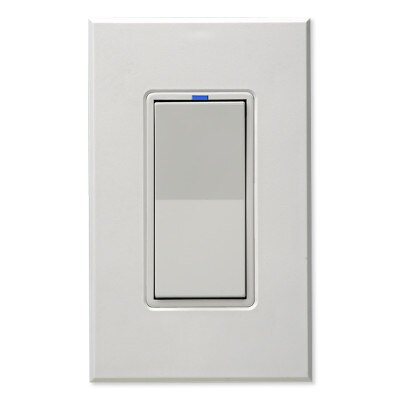

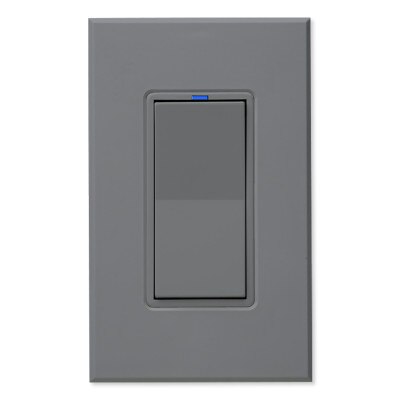

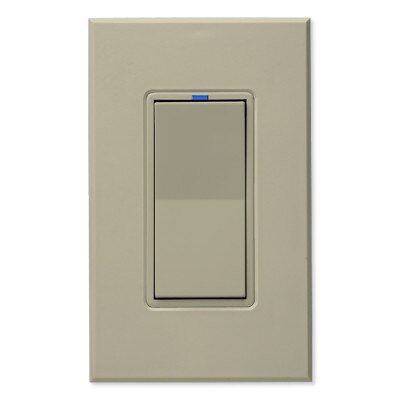

  • Available in 7 colors

NOTE: Requires a PulseWorx UPB transmitter OR Leviton HAI transmitter (433 MHz) for remote operation. Wallplate not included.

Tech Specs

  • Part Number:
    • HAI-WS1R-40A00-A: Almond
    • HAI-WS1R-40A00-B: Black
    • HAI-WS1R-40A00-BR: Brown
    • HAI-WS1R-40A00-G: Gray
    • HAI-WS1R-40A00-I: Ivory
    • HAI-WS1R-40A00-LA: Light Almond
    • HAI-WS1R-40A00-W: White
  • UPC:
    • HAI-WS1R-40A00-A (Almond): 811976010357
    • HAI-WS1R-40A00-B (Black): 811976010364
    • HAI-WS1R-40A00-BR (Brown): 811976010371
    • HAI-WS1R-40A00-G (Gray): 811976010388
    • HAI-WS1R-40A00-I (Ivory): 811976010395
    • HAI-WS1R-40A00-LA (Light Almond): 811976010401
    • HAI-WS1R-40A00-W (White): 811976010418
