PCS PulseWorx UPB Dimmer Fixture Module, 400W


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

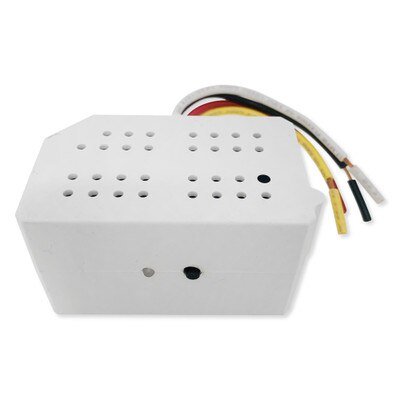

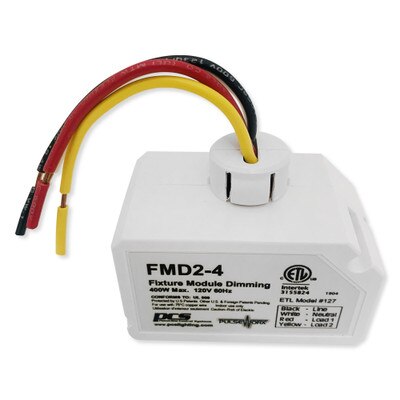

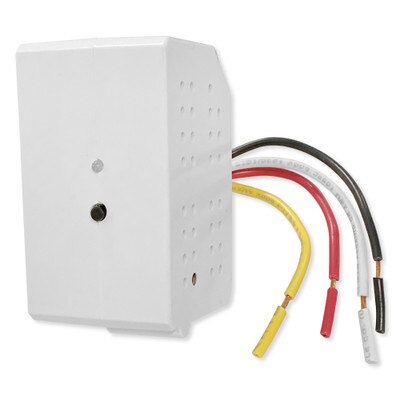

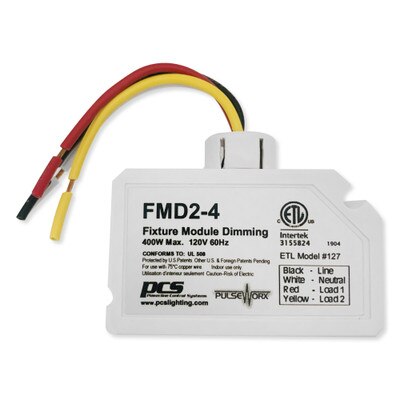

The FMD Fixture Module Dimmer is a two channel wire-in home automation dimmer module capable of receiving UPB digital commands over existing power lines. The Fixture Module Dimmer uses two separate wiring channels to control incandescent light fixtures that are not currently wired to a dedicated wall switch. Each channel may act as a dimmer or ON/OFF switch.

  • Each channel can act as a dimmer or an ON/OFF switch
  • Each channel may be included in up to 16 different scenes/links
  • Supports 400W max. total load, 200W even split between each channel, or 100W on Channel 1 and 300W on Channel 2
  • Will handle up to 375 VA inductive load
  • Easy knockout fitting on a single/multiple gang or junction box for simple placement

In The Box:

  • Fixture Dimming Module

Tech Specs

  • Part Number: FMD2-4
  • UPC: 811976011620
  • Power: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 2-Channel
  • Max Loading: 400W max. or 200W split between each channel
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 104°F (-40° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: UL-508-2010 CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: No
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press the setup button 5 times, the LED blinks to indicate activation
  • Mounting: Single Gang junction box or 1/2" Knockout
  • Dimensions: 2.87 in (H) x 1.65 in (W) x 1.78 in (D)
  • Weight: 4.0 oz.
  • Warranty: 5 Years
