  • PCS PulseWorx UPB Relay Fixture Module, 20A

PCS PulseWorx UPB Relay Fixture Module, 20A

$106.33
SKU: PCFMR120

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

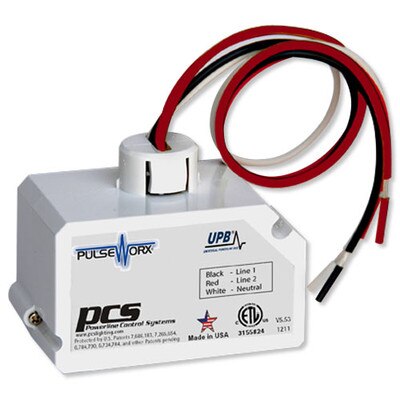

The PulseWorx FMR1-20: Fixture Module – Relay, 1 Channel, 20A Max transmits and receives On/Off commands via UPB using existing powerlines. This single-channel non-dimming relay load controller is ideal for fluorescent lighting, motors, transformers, and other wired loads. This module can be controlled by any UPB-compatible transmitter and included into up to 16 scenes. The Fixture Module fits inside or outside an enclosure box and fits into 1/2 inch knockouts. Configure the Fixture Module using the free UPStart Setup Software tool. FEATURES: Handles appliance up to 20 amps for ON/OFF control load. Easy lockout fitment on a single/multiple gang or junction box for simple placement.

  • Each channel can act as a dimmer or an ON/OFF switch, depending on its programming
  • Each channel may be a member of 16 different scenes/links
  • 400W max. total, i.e. 200W split between each channel, 100W on Channel 1 and 300W on Channel 2
  • Will handle up to 375 VA inductive load
  • Easy knockout fitting on a single/multiple gang or junction box for simple placement

Tech Specs

  • Part Number: FMR1-20
  • Power: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 2-Channel
  • Max Loading: 20A max. load – ON/OFF electronic device
  • Connections/Power Wire:
    • Two 14 AWG gauge 105 C insulation
    • Black – Hot/Line
    • White – Neutral (16 AWG gauge)
    • Red – Load
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 104°F (-40° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: UL-508-2010 CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: No
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press the setup button 5 times, the LED blinks to indicate activation
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 2.75 in (H) x 2.25 in (W) x 1.50 in (D)
  • Weight: 5.0 oz.
  • Warranty: 5 Years
