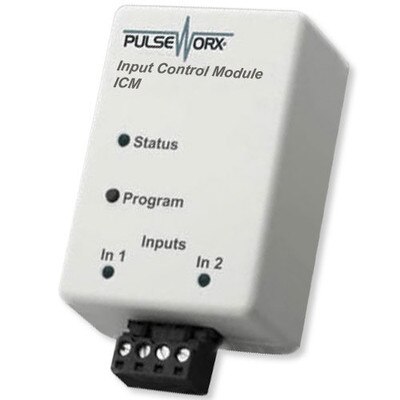

PCS PulseWorx UPB Input Control Module

$88.61
SKU: PCICM

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The PCS PulseWorx Input Control Module tests device status and triggers UPB events by transmitting UPB commands over existing power lines. The Input Control Module commands connected UPB controlled devices to turn on and off whenever a contact closure is made or low voltage is detected by either of its two separate inputs.

The ICM is perfect for pairing with motion or light sensors, pressure mats, pushbuttons, and more to the PulseWorx Lighting Control System to trigger actions such as:

  • Flashing a light to signal a device status change or event activation
  • Automatically turn on/off connected lights, devices, or appliances

The ICM plugs into a standard wall outlet and has two connection points for contact closure and low voltage contacts.

FEATURES:

  • Senses dry-contact switch closures or low voltage on two separate inputs
  • Commands devices to turn On/Off, such as lights, when an event or alarm is triggered
  • Ability to remotely enable/disable its input sensing mechanism
  • The inputs can be set to respond to either a momentary switch press or a maintained switch closure
  • Configure the module via UPStart Setup Software

Tech Specs

  • Part Number: ICM
  • Primary: 120 Volts AC, 50/60Hz (also see setup guide for further details)
  • Transmission Channels: 2-Channels, 1 Link/Scene per channel
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 104°F (-40° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: UL and CSA
  • Input Types: Contact closure: 5-24V AC or DC
  • Connection: 4 screw terminals, 16AWG
  • Retains all settings in Non-volatile EERPOM during power outages
  • Set-Up Mode: Press the setup button 5 times, the LED blinks
  • Dimensions: 3.00 in (H) x 2.00 in (W) x 1.25 in (D)
  • Weight: 5.0 oz.
  • Warranty: 5 Years
