PCS SimpleWorx Split Duplex Wall Receptacle (Open Box)

$51.30 $66.31
SKU: PCRAM15BR_OB

4 available at this price.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

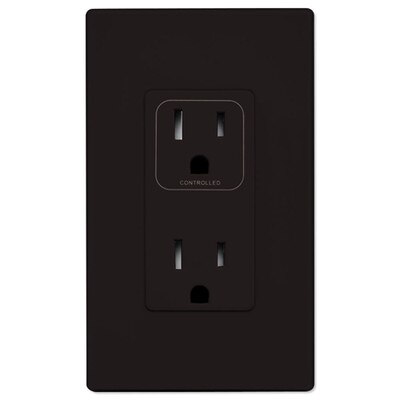

The PCS SimpleWorx Receptacle Module is a single-gang duplex receptacle with one UPB automated outlet and one always on standard outlet. The top outlet responds to commands from a SimpleWorx (SPC) transmitter (sold separately), while the bottom pass-through outlet stays powered continuously like a standard power outlet.

  • Top outlet responds to SimpleWorx commands
  • Bottom outlet stays powered independently
  • Supports 120V loads up to 15A
  • Links with up to 8 SimpleWorx (SPC) transmitters
  • Red LED light displays status and helps locate the plug at night
  • Tamper-Resistant design prevents insertion of foreign objects

Note: Wallplate not included. Requires a compatible SimpleWorx transmitter.

Tech Specs

  • Part Number: SWX-RAM-15-BR
  • UPC: 811976014157
  • Color: Brown
  • Size: 1-Gang
  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Max. Controlling Load: 15-Amp or 1/2 hp maximum loading
  • Connections: Colored Screws
    • Brass Screw (Lower Right) – Hot/Line
    • Brass Screw (Upper Right) – Load
    • Silver Screw (Upper/Middle Left) – Neutral
    • Green Screw (Lower Left) – Ground
  • Standby Power: < 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 140° F (-40° to 60° C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: Pending; ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010
  • Status LED Indicator: Red
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Hold the setup button for 8 seconds. Located in upper ground hole
  • Mounting: Single Gang or multi-ganged junction box
  • Dimensions: 3.31(H) x 1.20(W) x 1.90(D) inches
  • Weight: 3.4 ounces
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
