Platinum Tools ToneMaster High Power Tone Generator with ABN Clips

The Platinum Tools ToneMaster high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the Platinum Tools ToneSeeker tracer, the ToneMaster makes easy work of tracing and locating cables and cable ends.

• 700% more power than standard tone generators
• Unbalanced tone mode supports longer distances on UTP cables
• Constant amplitude output ensures no signal decrease as battery discharges
• Auto-off for battery conservation
• Full talk battery to power a dry line
• Tone may be added in any mode – phone sets without a monitor feature can pick up tone

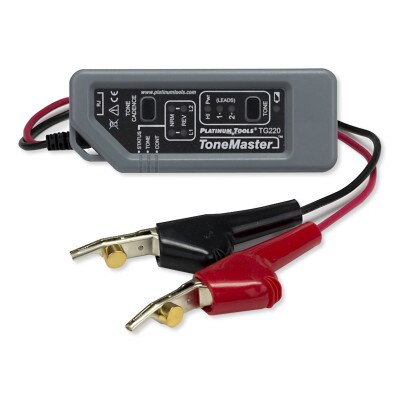

• Part number TG220C includes molded-in angled bed-of-nails (ABN) clips

In The Box:

• Tone Generator with ABN Clips
• Manual

NOTE: Requires an amplifier probe (sold separately).
