Qolsys IQ Wireless Smoke & Heat Detector

$70.54
SKU: QS5110840

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

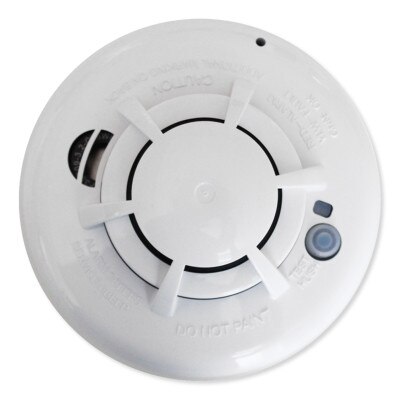

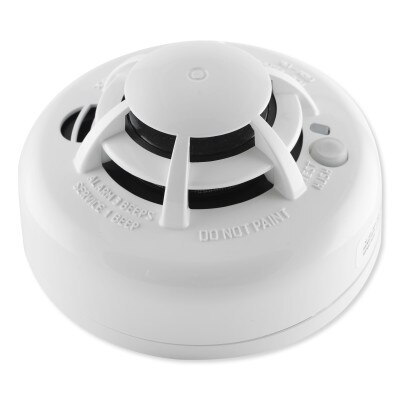

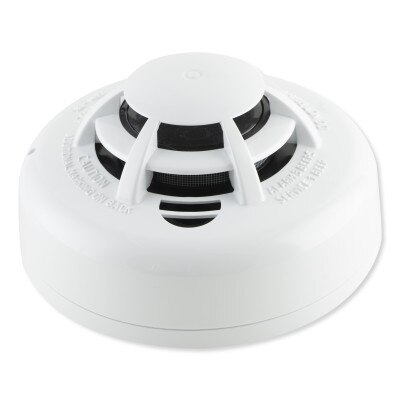

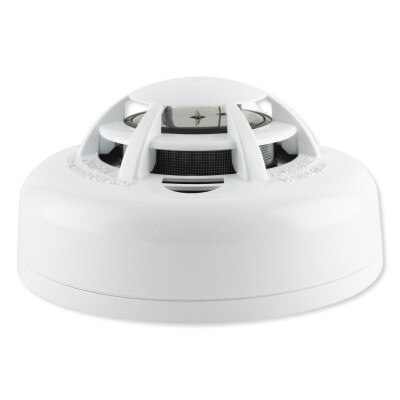

The IQ Smoke is connected to your IQ Panel and monitored 24-7, whether your system is armed or not. The IQ Smoke detects the presence of smoke using photoelectric smoke-sensing technology and conforms to UL 217. The IQ Smoke detects the presence of smoke particles as well as the rapid rise in heat that can come from a fire, even if there is no smoke. Because your system is always connected, you can receive a text or email alert if there are any problems, wherever you are.

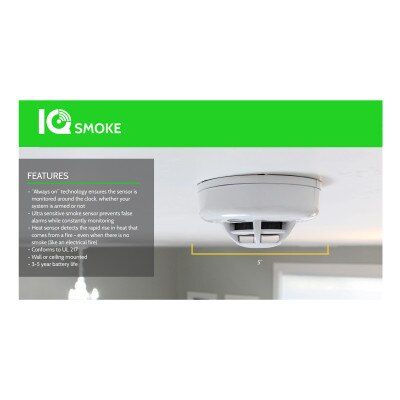

Features:

  • "Always on" technology ensures the sensor is monitored around the clock, whether your system is armed or not
  • Ultra sensitive smoke sensor prevents false alarms while constantly monitoring
  • Heat sensor detects the rapid rise in heat that comes from a fire – even when there is no smoke (like an electrical fire)
  • Wall or ceiling mounted
  • 3-5 year battery life

The detector has a built-in wireless transmitter, which communicates with the control panel. When smoke is detected, the alarm sounds a loud local alarm and the built-in transmitter sends a signal to the control panel. The Alarm contains an integrated fixed 135°F temperature sensor that will send a warning signal based on temperature detected. This detector is designed to provide protection with 70-foot spacing capability. The detector can send alarm, tamper and battery condition messages to the system's receiver.

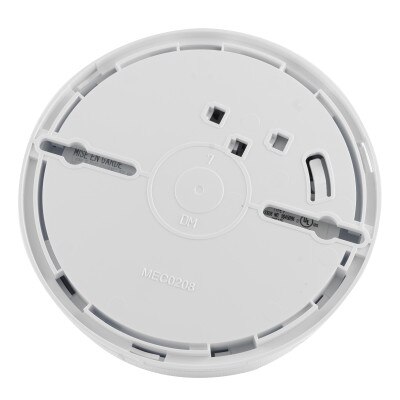

The Alarm contains a sounder which generates the ANSI S3.41 temporal 3 pattern in an alarm condition. In alarm, a message is also sent to the control panel and the detector's ID is displayed at the console. During an alarm condition, pressing the detector's hush button will silence the sounder. The mounting base installation is simplified by the incorporation of features compatible for both drywall fasteners (not supplied) and other methods. Tricolored LED (red, yellow, green) and a sounder on the detector provide local visual and audible indication of the detector's status.

In The Box:

  • Detector
  • Batteries
  • Screws
  • Anchors
  • Labels
  • Instructions

NOTE: Connects to required control panel/receiver operating on wireless 319.5 MHz frequency. Compatible wireless options include: GE/Interlogix Panel (NetworX, Simon, etc.), Qolsys IQ Panel, Leviton 64-Zone Receiver for GE/Interlogix, Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters, or other legacy 319.5 MHz system (not included).

Tech Specs

  • Part Number: QS5110-840
  • Battery: 3 AAA PC2400 Duracell Procell batteries (1.5V 1100mAh) or 3 AAA Energizer E92 batteries (1.5V 1100mAh) (included)
  • Battery Life: 3-5 years
  • Transmitter Frequency: 319.5 MHz
  • Wireless Signal Range: 600 feet (200 m), open air.
  • Audible Signal (ANSI Temporal 3): 85dBA min. in alarm
  • Sensitivity: 1.5 to 3.5 percent per foot
  • Supplementary Heat Rating: 135°F
  • Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C)
  • Relative Humidity: 15 to 90 percent non-condensing
  • Dimensions: 5.0(Dia.) x 2.5(Depth) inches
  • Regulatory Listing: UL 217
  • Approvals: FCC, IC
  • Warranty: 1-Year Limited

Product Docs

Compatible 319.5 MHz Wireless Panels/Receivers*

  • GE/Interlogix Panel (NetworX, Simon, etc.)
  • Qolsys IQ Panel (Version 1 or 2)
  • Leviton 64-Zone Receiver for GE/Interlogix (part 42A00-2)
  • Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters (part ELK-M1XRFEG)

*Panels and receivers are sold separately.
