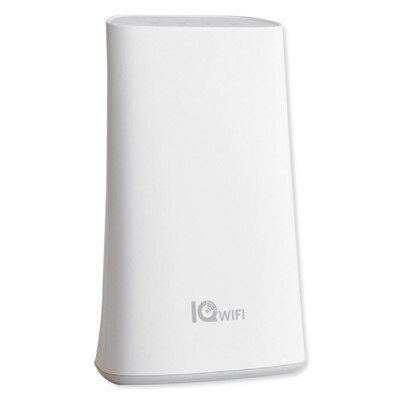

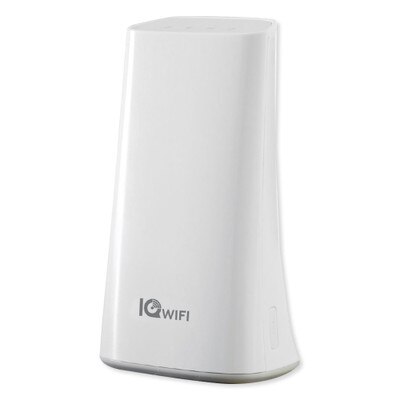

Qolsys IQ Wi-Fi Mesh Router for IQ Panels

$98.12 $255.92
SKU: QW8200840

8 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Qolsys IQ Wi-Fi Mesh Router for IQ Panels is a mesh capable router that is capable of covering every corner of every room with safe, seamless Wi-Fi. It's designed to expand your current Wi-Fi network or create a parallel network by including up to 8 nodes (1 controller and 7 agents) for equal Wi-Fi coverage across the whole building.

  • WiFi mesh prioritizes ethernet backhaul (wired connection) then shared wireless backhaul (if wired connection isn't available)
  • Stand alone or parallel configuration supported
  • Web interface or IQ Panel configurable
  • WiFi version 5
  • Supports Dual-band 2.4G/5G networks
  • Supports 7 additional Agents (1 Controller)

In The Box:

  • IQ Wi-Fi
  • Ethernet Cable
  • Power Supply
  • QR Code Sticker

NOTES: Requires an IQ Panel or an external modem (both sold separately) with an Internet connection. IQ WiFi will not increase the speed coming from your ISP (Internet Service Provider) but can ensure you are getting the best coverage throughout your location. Please note that not all buildings are the same, and building materials, wireless interface, and other factors can limit Wi-Fi range.

Tech Specs

  • Part Number: QW8200-840
  • UPC: 857497008541
  • Process and Memory: SSoC: MT7621DA (MIPS1004Kc dual-core 880MHz, SPI NOR Flash 64MB); Memory: 128MB DDR3 embedded

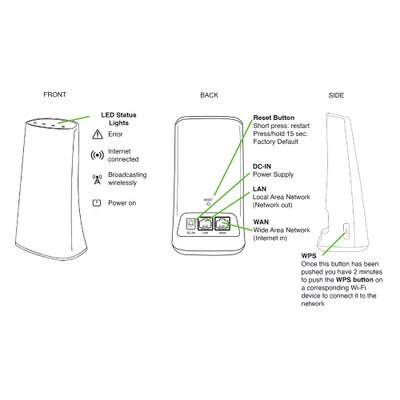

  • LED and Button:
    • LEDs: 4 Single Color LED
    • 1 WPS Button on the side
    • 1 Reset button on the back
  • Wireless Band: Dual IEEE 802.11 b/g/n 2.4GHz IEEE 802.11 a/n/ac 5GHz – AC1200
  • Ethernet: 1x LAN / 1x WAN Gigabit Ethernet Ports
  • Security: WPA2 encryption
  • Expandable Mesh: Add up to 8 nodes (1 controller & 7 agents)
  • DHCP: Server, Client
  • Protocols: IPv4 and IPv6
  • Guest Network: 2.4GHz/5GHz
  • WPS: Physical button is on the side of the device
  • Power Supply AC-DC: AC (110V 60Hz / 240V 50Hz), 12 DC (12V/1A) – Barrel jack
  • Operating Temperature: 32°F to 104°F (0°C – 40°C)
  • Operating Distance: Up to 1,500 square feet per point
  • Weight: 172g
  • Size: 5.9 x 3.5 x 2.2 inches (150 x 89 x 57mm)
