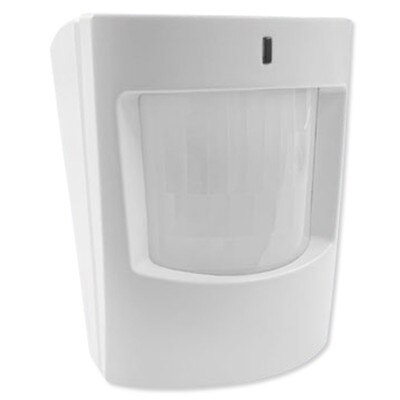

Qolsys IQ Wireless Motion-S Sensor
Product Description
The IQ Motion-S is an encrypted PIR sensor that is as powerful as it is affordable. Designed with S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. The Motion-S sensor pet immunity feature ignores small figures up to 40 pounds and is designed to mount on a flat surface or in a corner of a room.
- Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
- Provides security coverage up to 30' in a large open area
- Use to create rules such as "When someone enters the room, turn on the light" or "Trigger alarm when an intruder is detected."
- Pet immune up to 40 lbs
In The Box:
- Motion-S Sensor
- Batteries (pre-installed)
- Mounting Adhesive
- Instructions
NOTES: Requires connection to a compatible control panel/receiver (319.5 MHz wireless frequency), such as a GE/Interlogix Panel (NetworX, Simon, etc.), Qolsys IQ Panel, Leviton 64-Zone Receiver for GE/Interlogix, Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters, or other legacy 319.5 MHz system (all sold separately). For indoor non-hazardous locations only. Replace battery with exact replacement every 5 years.
Tech Specs
- Part Number: QS1231-840
- Sensor Range: 30 ft
- Wireless Signal Range: 600 ft, open air
- Compatible Control Panels: Qolsys IQ Panel 2 or other 319.5 MHz system
- Code Outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
- Transmitter Frequency: 319.5MHZ ±15KHz
- Transmitter bandwidth: 24KHZ
- Modulation Type: ASK-OOK
- RF Output Power: 91.1dBuV ± 5% at 3m
- Maximum Horizontal Sensing: Angle 80°
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Relative Humidity: 5-95%
- Non-Condensing Storage Temperature: -40°F to 176°F (-40°C to 80°C)
- Battery: Replace batteries every 5 years with AAA Alkaline (x2). Detector intended for use with (2) Huizhou Deanda Battery Co. AAA LR03
- Dimensions: 2.4(W) x 1.5(D) x 3.4(H) inches (61 x 38 x 86 mm)
- Approvals: FCC, IC, UL
