Qolsys IQ Wireless S-Line Encrypted Door/Window Sensor

$35.29
SKU: QS1133840

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

With a five year battery life and a slimmer form factor than other full sized sensors, the Qolsys IQ Wireless S-Line Encrypted Door/Window Sensor is designed to alert you when a door or window is opened or closed. I can be attached to just about any object that opens or closes, such a door, window, safe, medicine cabinet, or other object. It's an encrypted sensor with superior range that can also be integrated in your home automation system. Have your lights turn on as soon as your door is opened or have your thermostat automatically adjust if your window is left ajar. It also features customizable chimes and unique names spoken by the panels text-to-speech so you can hear when your door is opened or closed. Create personalized notifications and rules with the interactive app.

  • Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems

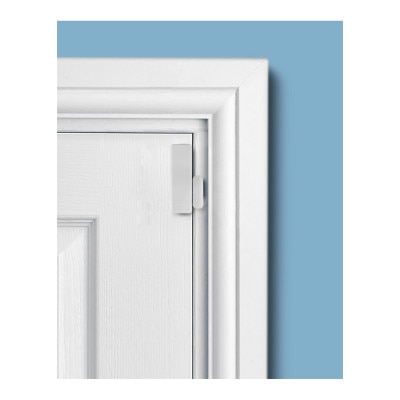

  • Can be easily mounted on doors or windows with included adhesive
  • Alerts IQ Panel if moved more than 1"
  • Can be programmed as "Safety Sensor" for medicine cabinets, chemical storage, safes or storage closets
  • Using Alarm.com you can get a text if your door or window is left open
  • Create automation rules like "turn on light when door is opened" or "adjust thermostat if window left open"
  • Requires one (1) 3V CR2 Battery
  • The built-in tamper switch triggers an alert if the cover is removed
  • Create custom names for each sensor, determine unique chime type, choose voice prompts on or off

In The Box:

  • Door/Window Sensor
  • Batteries (pre-installed)
  • Mounting Adhesive
  • Instructions

NOTES: Requires connection to a compatible control panel/receiver (319.5 MHz wireless frequency), such as a GE/Interlogix Panel (NetworX, Simon, etc.), Qolsys IQ Panel, Leviton 64-Zone Receiver for GE/Interlogix, Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters, or other legacy 319.5 MHz system (all sold separately). For indoor locations only. Replace battery with exact replacement every 5 years.

Tech Specs

  • Part Number: QS1133-840
  • Compatible Control Panels: Qolsys IQ Panel 2 or other 319.5 MHz system
  • Code Outputs: tamper, tamper restore, alarm, alarm restore, low battery
  • Frequency: 319.5MHz
  • Transmitter Frequency: SECURE 319.5 MHz (S-Line)
  • Unique code ID
  • Supervisory Keep-Alive Interval: 70 minutes
  • RF Peak Field Strength: Typical 36000 uV/m at 3m
  • Operating Temperature: 0° C~49° C
  • Relative Humidity: 85% Max
  • Storage Temperature: -40 – 85° C
  • Battery: 3V Lithium CR2
  • Low Battery Threshold: 2.6V
  • Dimensions: .85(W) x .75(D) x 2.65(H) inches
