Qolsys IQ Wireless S-Line Flood Sensor

$57.03
SKU: QS5536840

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

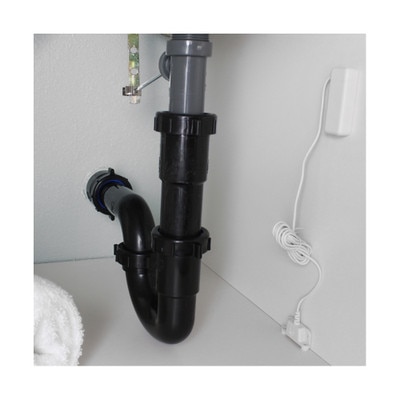

Prevent extensive damage at home caused by flooding with the IQ Flood-S. This flood sensor detects the presence of water and will report it to the IQ Panel so you can be notified. Install at the base of water heaters, washing machines, sinks, and any other machine or appliance that can potentially leak and cause a flood. Includes a 6' wire with water contact sensor and encryption technology.

  • Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
  • Water detection unit can be fastened to the floor or to the wall
  • Reports water presence to IQ Panel
  • Receive email or text alerts whenever water is detected

In The Box:

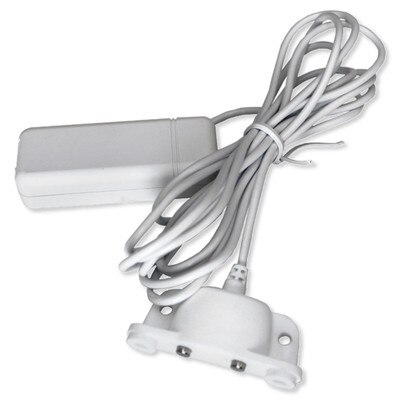

  • IQ Wireless S-Line Flood Sensor
  • Batteries (pre-installed)
  • Mounting Adhesive
  • Instructions

NOTES: Requires connection to a compatible control panel/receiver (319.5 MHz wireless frequency), such as a GE/Interlogix Panel (NetworX, Simon, etc.), Qolsys IQ Panel, Leviton 64-Zone Receiver for GE/Interlogix, Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters, or other legacy 319.5 MHz system (all sold separately). Make sure to mount the sensor above the floor level to prevent water damage.

Tech Specs

  • Part Number: QS5536-840
  • Wireless Signal Range: 600 feet (200m), open air
  • Code Outputs: Tamper, tamper restore, alarm, alarm restore, low battery
  • Transmitter Frequency: 319.5 MHz
  • Unique Code ID
  • Supervisory Keep-Alive Interval: 70 minutes
  • RF Peak Field Strength: Typical 36000 uV/m at 3m
  • Replace battery with exact replacement every 5 years with 3V Lithium (x2)
    • Panasonic CR2032
    • Energizer CR2032
    • Duracell DL2032
  • Operating Temperature: 50° to 122° F (10° to 50° C)
  • Storage Temperature: 104° to 176° F (40° to 80° C)
  • Relative Humidity: 5-95% Non-Condensing
  • Dimensions: 1(W) x 2.5(H) x 5(D) inches (25 x 64 x 127 mm)
  • Certifications: FCC, IC
