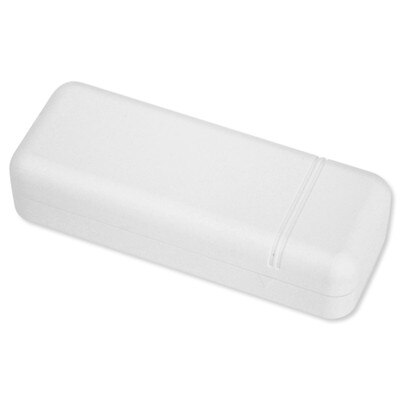

Qolsys IQ Wireless S-Line Garage Tilt Sensor
Product Description
Know when you've left the garage door opened with the IQ Wireless S-Line Garage Tilt Sensor. This sensor mounts to the top panel of your garage door. When the garage door is opened or closed, it will detect the tilt and send you an alert. The sensor is battery powered, which means there's no wiring necessary. The sensor has built-in S-Line encryption technology and is compatible with 319.5 MHz wireless panels, such as GE/Interlogix or Qolsys IQ (version 1 or 2).
- Detects the opened or closed status of a garage door
- Up to 600 feet wireless range
- Low battery alerts are provided
- Easy installation
In The Box:
- Qolsys IQ Wireless S-Line Garage Tilt Sensor
- (2) 3V Lithium Batteries
- Adhesive Sticker
- User Manual

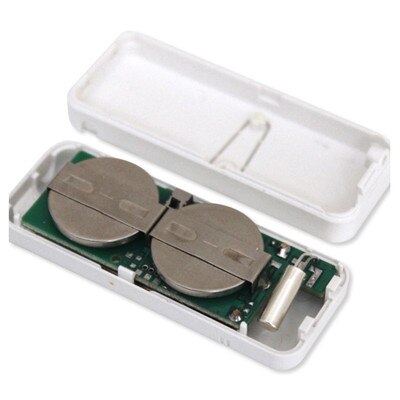

NOTE: Improper orientation and/or placement of the bearing cylinder may result in false alarms or incorrect signals.
Tech Specs
- Part Number: QS1131-840
- Battery: 3V Lithium (replace every 5 years, two are included)
- Battery Types:
- Panasonic CR2032
- Energizer CR2032
- Duracell DL2032
- Wireless Signal Range: 600ft (200M), open air
- Code Outputs: Tamper, tamper restore, alarm, alarm restore, low battery
- Transmitter Frequency: 319.5 MHz
- Supervisory Keep-Alive Interval: 70 minutes
- RF Peak Field Strength: Typical 36000 uV/m at 3m
- Operating Temperature: 50° to 122° F (10° to 50° C)
- Relative Humidity: 5-95% Non-Condensing
- Storage Temperature: 104° to 176° F (40° to 80° C)
- Dimensions: 1(W) x 2.5(H) x .5(D) inches (25.4 x 63.5 x 12.7 mm)
Compatible 319.5 MHz Wireless Panels/Receivers*
- GE/Interlogix Panel (NetworX, Simon, etc.)
- Qolsys IQ Panel (Version 1 or 2)
- Leviton 64-Zone Receiver for GE/Interlogix (part 42A00-2)
- Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters (part ELK-M1XRFEG)
*Panels and receivers are sold separately.
