Russound 3.1-Channel Low-Profile Mini-AVR with HDMI
Product Description
The Russound 3.1-Channel Low-Profile Mini-AVR with HDMI is a multi-channel Class D amplifier and receiver designed to deliver audio from TVs, media players, or streaming sources to three speakers and a subwoofer. The Mini-AVR is capable of fitting into virtually any entertainment system thanks to its compact design and versatile audio input options (HDMI-ARC, Optical, Line Level Stereo, and Bluetooth). The HDMI ARC input features CEC control to enable the amplifier to be used seamlessly with any modern TV without the need for any additional remote control other than the remote included with your TV or cable-box. The Mini AVR includes its own IR Learning Remote for installations where a universal remote can be effectively utilized or as a secondary remote to control the amplifier and connected inputs.
Key Features:
- 3.1 Channel Output delivers rich and dynamic audio to connected speakers and subwoofer to improve the sound quality of your movies, music, and games
- 4 audio inputs, HDMI ARC, Optical, Line Level Stereo, and Bluetooth 5, turns the amplifier into a mini receiver that works with most audio setups
- Power Outputs at 50W per Channel @ 4 ohms or at 8 ohms
- HDMI ARC (Audio Return Channel) input enables the Amplifier to be controlled by your TV or cable boxes' existing remote
- Low-profile and compact design enables the AVR to fit into most media centers, behind electronics, large electrical boxes or on shelves

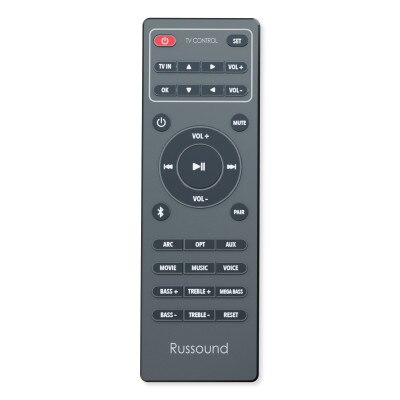

- Included IR Learning Remote can control the Mini-AVR and connected audio systems and TVs
- Works seamlessly with Russound speakers and audio distribution systems
Why You Would Use This Product:
The Russound Low-Profile Mini-AVR is designed to upgrade your home entertainment system with improved audio quality and additional audio inputs. Connect your favorite audio and video sources devices, including TVs, DVD/Blu-ray players, and streaming devices to enjoy amazing sound from your connected speakers. Whether you're hosting a movie night with friends or relaxing with your favorite music playlist, this mini-AVR offers the versatility and performance you need to take your home entertainment to the next level. Its compact design also makes it ideal for smaller spaces or rooms where space is limited.
In The Box:
- Amplifier
- Learning Remote
- Power Cord
- Mounting Bracket
- Infrared Receiver with IR Receiver Eye
- Installation Manual
Tech Specs
- Part Number: AVA3.1
- UPC: 612934853975
- Number of Channels: 3.1
- Inputs: HDMI (ARC), Line In (RCA), Optical, Bluetooth
- Bluetooth Version: 5
- Bluetooth Range: Up to 100ft line of sight (30m)
- Power Output:
- 50W Per Channel @ 4 ohms
- 50W Per Channel @ 8 ohms
- Frequency Response: 20Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
- Input Sensitivity: 1000V for 45W @ 1KHz
- Input Impedance: >22k ohms Line Input
- Signal to Noise Ratio:
- >93dB A-weighted at 4 ohms
- >97dB A-weighted at 8 ohms
- Remote Control: Included
- IR Sensor: Included
- IR Input/Output: 3.5 mm
- Speaker Connectors: Detachable Screw-down, up to 14AWG
- Line Out: 3.5mm Stereo
- Subwoofer Out: RCA
- Operating Altitude: 0 to 9843 feet (3000m)
- Power Requirement(s): 115-120VAC, 60Hz (150W Max)
- Standby Power Consumption: 0.45W
- Dimensions: 5.8 W x 1.4 H x 12.7 D inches (27.48 W x 8.3 H x 32.2 D cm)
- Weight: 1.5lbs (0.7kg)
- Shipping Dimensions: 10.7 (W) x 3.3 (H) x 12.7 (D) inches (27.2 x 8.3 x 32.2 cm)
- Shipping Weight: 2.4 lbs (1.1 kg)
- Certifications: CE, UL STD. 60065 Certified to CSA STD. C22.2 No. 60065
- Warranty: 2 Years Limited
