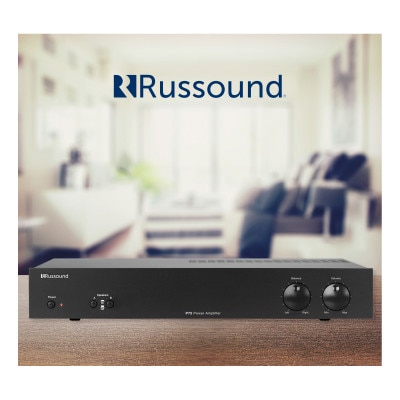

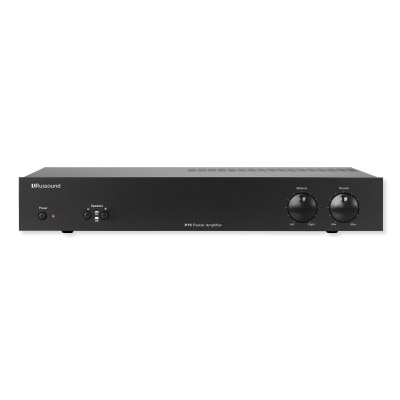

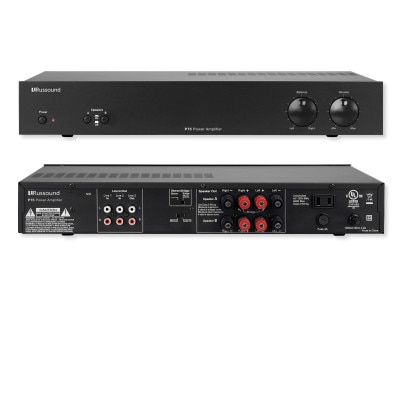

Russound Dual Source Amplifier, 2-Channel, 75W

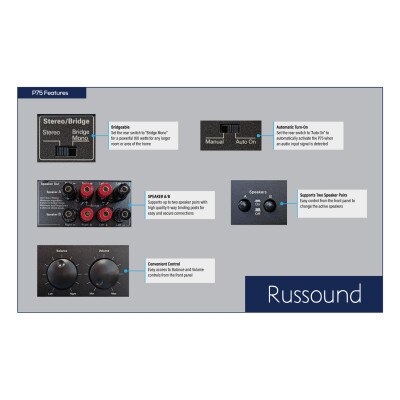

The Russound Dual Source Amplifier, 2-Channel, 75W comes with a variety of features such as Stereo or Bridge Mono options, Auto On functionality, support for up to two speaker pairs (Speaker A/B), and easy access to Balance and Volume controls from the front panel. The P75 Two-Channel Amplifier is rated at 75 watts per channel into 4 ohms, and 60 watts into 8 ohms with the option of combining both amplifier channels in bridge mode for a higher powered mono output. In Bridge mode the P75 is rated at 160 watts of power into a single 8 ohm load.

• Two audio line inputs with a loop out to another zone, receiver, or device
• Designed as a Class A/B amplifier rated at 75 watts per channel into 4 ohms, and 60 watts into 8 ohms
• Channels are bridgeable to create one channel with 160 watts of power
• Ideal for multi-speaker applications with front panel volume and balance controls
• Automatic switching between two sources with signal sensing

Why You Would Use This Product:

The P75 2-Channel Dual Source Amplifier offers versatility because it can be used as a single source amplifier, providing high-powered audio for any room of your home, or it can provide two line inputs with a loop out that can connect to another zone, device, or receiver. Connect your television's audio to one line and your desktop computer's audio to another. Then you can use the loop out to connect to another device, receiver or zone.

In The Box:

• P75 Dual Source Amplifier, 2-Channel, 75W
• Mounting Hardware
• Manual

Notes:

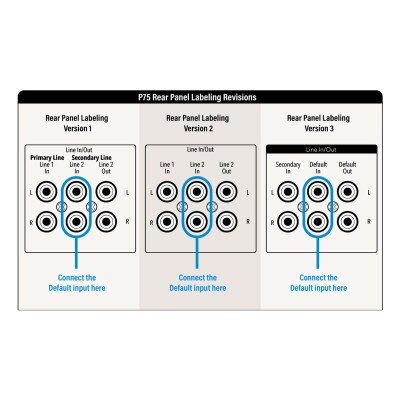

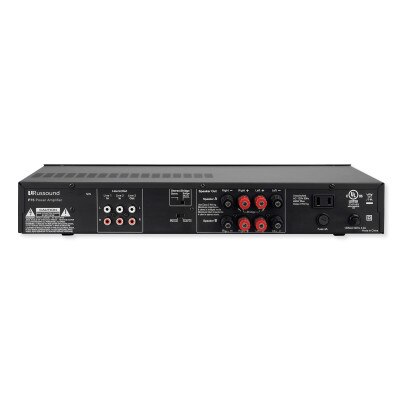

• When using the P75 as a single audio source the default audio device needs to be connected to the "Default In" in the rear panel.
• When connecting speakers to the P75 amplifier, use a minimum 16 gauge and maximum 12 gauge stranded copper cable.
